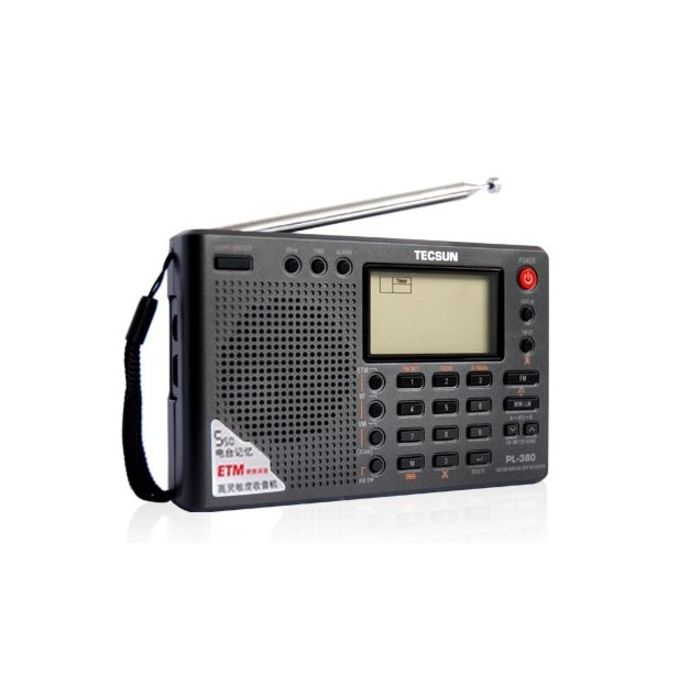

Tecsun PL-380 Wereldontvanger Black

Art.nr. 1758
Op voorraad
Excl. BTW € 59,96 € 49,55
DSP (Digital Signal Processing) multi-band draagbare radio.

Description


Tecsun PL-380 is a DSP (Digital Signal Processing) multi-band portable radio. It uses DSP si4734 micro-chips (from Silicon Labs in USA) to digitize the analog MW / FM / SW broadcasting signal base through modern software technology and radio principles. It greatly improves the radio's sensitivity, selectivity, S/N ratio and anti-interference.
PL380 is equipped with Easy Tuning Mode (ETM), Tecsun’s own designed tuning method. ETM provides the user the possibility to auto-scan for new radio stations, without replacing stations that are already stored into the radio’s memory. ETM is an ideal feature for users who listen to radio broadcastings at different locations.
Frequency Range:
FM range selectable:
64 - 108MHz
76 - 108MHz
87 - 108MHz
MW (AM) range selectable:
9kHz steps: 522 - 1620kHz
10kHz steps: 520 - 1710kHz
LW: 153 – 513kHz
SW: 2300 – 21950kHz
Tuning Methods:
Easy Tuning Mode (ETM): auto-scan for new radio stations, without replacing existing stored memories. Newly found stations will be temporarily stored into the ETM memory.
Auto Tuning Storage (ATS) for FM / MW / LW /SW
Jog dial manual Tuning
Direct keypad frequency entry
Basic Features:
Multi-functional Digital Display shows:
Frequency
Signal strength
S/N ratio
Clock & Alarm (12/24 hour format)
Temperature (°C or °F)
Battery consumption
LCD display screen
550 preset memories (100 memories for each MW / FM and LW, 250 memories for SW)
Alarm by radio or 'buzz', and with the automatic alarm stopper within 1 - 90 minutes
Sleep timer (1 - 120 minutes)
FM Mono & Stereo
Light & snooze function – 5 minutes, repeated three times
Keylock function
Back stand
Earphone jack
DC 5V USB jack (USB cable not included)
Built-in speaker (D50mm, 500mW)
Built-in charging system to charge Ni-MH rechargeable batteries
Power supply: USB 5V/250mA external adaptor (not included) / 3pcs AA size batteries (not included)
Unit size: 135 x 83 x 27 mm (L x H x W)
Original accessories:
1pc stereo earphone
1pc protective sleeve
1 pc FM/SW wire antenna
English manual
Specification:
Noise Limit Sensitivity
FM < 3uV
MW < 1mV/m
LM < 10mV/m
SW < 20uV
Selectivity
FM > 60 dB
MW > 60 dB
LM > 60 dB
SW > 60 dB

Tecsun PL-380 is a DSP (Digital Signal Processing) multi-band portable radio. It uses DSP si4734 micro-chips (from Silicon Labs in USA) to digitize the analog MW / FM / SW broadcasting signal base through modern software technology and radio principles. It greatly improves the radio's sensitivity, selectivity, S/N ratio and anti-interference.

PL380 is equipped with Easy Tuning Mode (ETM), Tecsun’s own designed tuning method. ETM provides the user the possibility to auto-scan for new radio stations, without replacing stations that are already stored into the radio’s memory. ETM is an ideal feature for users who listen to radio broadcastings at different locations.

Frequency Range:

FM range selectable:

64 - 108MHz

76 - 108MHz

87 - 108MHz

MW (AM) range selectable:

9kHz steps: 522 - 1620kHz

10kHz steps: 520 - 1710kHz

LW: 153 – 513kHz

SW: 2300 – 21950kHz


Tuning Methods:

Easy Tuning Mode (ETM): auto-scan for new radio stations, without replacing existing stored memories. Newly found stations will be temporarily stored into the ETM memory.


Auto Tuning Storage (ATS) for FM / MW / LW /SW

Jog dial manual Tuning

Direct keypad frequency entry


Basic Features:




  • Multi-functional Digital Display shows:
  • Frequency
  • Signal strength
  • S/N ratio
  • Clock & Alarm (12/24 hour format)
  • Temperature (°C or °F)
  • Battery consumption
  • LCD display screen
  • 550 preset memories (100 memories for each MW / FM and LW, 250 memories for SW)
  • Alarm by radio or 'buzz', and with the automatic alarm stopper within 1 - 90 minutes
  • Sleep timer (1 - 120 minutes)
  • FM Mono & Stereo
  • Light & snooze function – 5 minutes, repeated three times
  • Keylock function
  • Back stand
  • Earphone jack
  • DC 5V USB jack (USB cable not included)
  • Built-in speaker (D50mm, 500mW)
  • Built-in charging system to charge Ni-MH rechargeable batteries
  • Power supply: USB 5V/250mA external adaptor (not included) / 3pcs AA size batteries (not included)
  • Unit size: 135 x 83 x 27 mm (L x H x W)




Original accessories:

  • 1pc stereo earphone
  • 1pc protective sleeve
  • 1 pc FM/SW wire antenna
  • English manual


Specification:

Noise Limit Sensitivity

FM < 3uV

MW < 1mV/m

LM < 10mV/m

SW < 20uV


Selectivity

FM > 60 dB

MW > 60 dB

LM > 60 dB

SW > 60 dB
