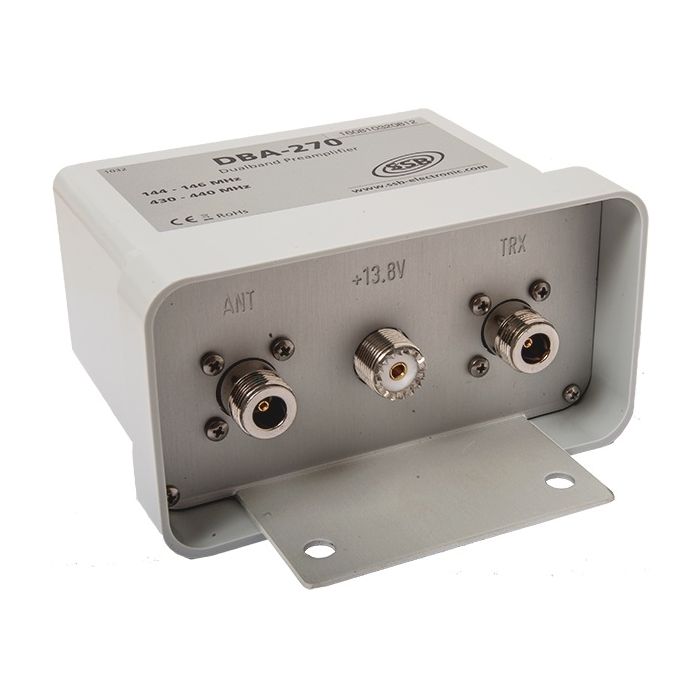

SSB DBA-270
Art.nr. 4215
Op voorraad
Excl. BTW
€ 325,01
€ 268,60
2 Mtr - 70 Cm Mastvoorversterker
Description
The Dualband Mast-Preamplifier DBA-270 improves the receiving characteristics of amateur radio stations in the 2-m and 70-cm-Band. Due to the built-in Diplexer only one HF-socket for the combi-antenna and the coaxial cable has to be connected.
The maximum switching power with HF-VOX is 100 Watt. Like all SSB-Electronic preamplifiers, the DBA-270 offers the possibility of direct supply and remote supply. With a sequencer the maximum transmission power is 500W. The direct supply is made via a UHF socket, the remote supply is made in the usual way via the existing coaxial cable. A Bias-T like the type DCC-12 should be connected for this purpose.
The DBA-270 can be switched by the transceiver via the coaxial cable, if the transceiver can contrrol a mast preamplifier.
Technical Data
Frequency Range 144-146
430-440 MHz
Noise figure typ. 0,5
0,7 MdB
Amplification 20
24 dB
HF-power 100 W with HF-VOX
500 W with Sequencer
Insertion loss 0,1
0,2 dB
Operation voltage 12-14 V
Current consumption 250 mA
Mast diameter 58 mm
The Dualband Mast-Preamplifier DBA-270 improves the receiving characteristics of amateur radio stations in the 2-m and 70-cm-Band. Due to the built-in Diplexer only one HF-socket for the combi-antenna and the coaxial cable has to be connected.
The maximum switching power with HF-VOX is 100 Watt. Like all SSB-Electronic preamplifiers, the DBA-270 offers the possibility of direct supply and remote supply. With a sequencer the maximum transmission power is 500W. The direct supply is made via a UHF socket, the remote supply is made in the usual way via the existing coaxial cable. A Bias-T like the type DCC-12 should be connected for this purpose.
The DBA-270 can be switched by the transceiver via the coaxial cable, if the transceiver can contrrol a mast preamplifier.
Technical Data
- Frequency Range 144-146 430-440 MHz
- Noise figure typ. 0,5 0,7 MdB
- Amplification 20 24 dB
- HF-power 100 W with HF-VOX
- 500 W with Sequencer
- Insertion loss 0,1 0,2 dB
- Operation voltage 12-14 V
- Current consumption 250 mA
- Mast diameter 58 mm
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | SSB |
