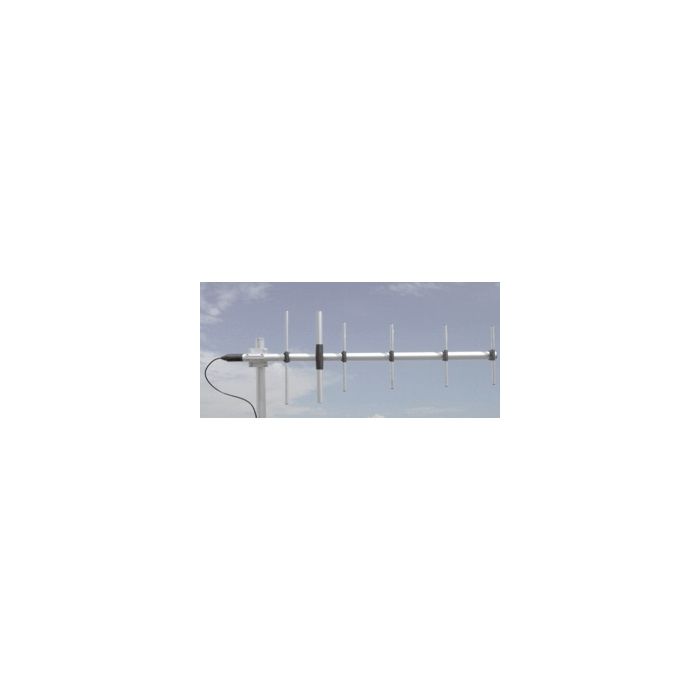

Sirio WY400-6N Basisantenne
Art.nr. 5418
Niet op voorraad
Excl. BTW
€ 119,00
€ 98,35
8.85 dBd – 11 dBi, 6 elements Yagi,400-470 MHz @ SWR ?1.5 No tuning required, N Female connector
Description
Electrical Data:
Type: 6 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range:
WY 380-6N:
380-440 MHz @ SWR =1.5 No tuning required
WY 400-6N:
400-470 MHz @ SWR =1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 8.85 dBd – 11 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx):
WY 380-6N:
1180 x 400 mm / 3.87 x 1.31 ft
WY 400-6N:
1130 x 375 mm / 3.71 x 1.23 ft
Weight (approx):
WY 380-6N:
1540 gr / 3.4 lb
WY 400-6N:
1490 gr / 3.28 lb
Mounting type: On-Mast
Electrical Data:
Type: 6 elements Yagi
Radiation: Directional
Polarization: Linear Horizontal
Frequency range: WY 400-6N:400-470 MHz @ SWR =1.5 No tuning required
Systems: 70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 8.85 dBd – 11 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Chromed brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx): WY 400-6N:1130 x 375 mm / 3.71 x 1.23 ft
Weight (approx): WY 400-6N:1490 gr / 3.28 lb
Mounting type: On-Mast
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Sirio |
