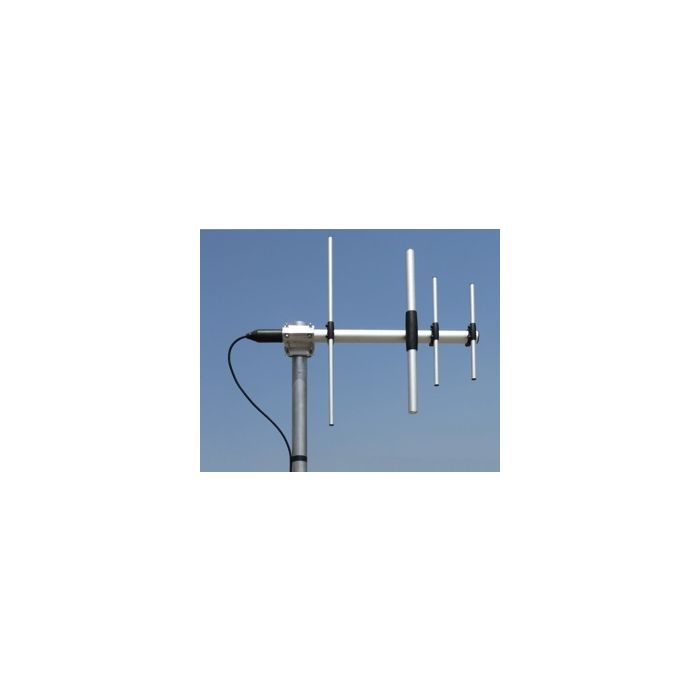

Sirio WY300-4N Basisantenne
Art.nr. 5288
Niet op voorraad
Excl. BTW
€ 105,00
€ 86,78
8.85 dBd – 8 dBi, 4 elements Yagi, 300-500 MHz @ SWR ?2 No tuning required, N Female connector
Description
Electrical Data:
Type: 4 elements Yagi
Radiation: Directional
Polarization: Linear Vertical or Horizontal
Frequency range: 300-500 MHz @ SWR =2 No tuning required
Systems: 70cm-HAM, TETRA-350, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
Gain: 5.85 dBb - 8 dBi
Max Power: 150 W (CW)
Grounding protection: DC-Ground
Connector: N-female
Mechanical Data:
Materials: Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber
Dimensions (approx): 480 x 600 mm / 1.57 x 1.97 ft
Weight (approx): 1300 gr / 2.87 lb
Mounting type: On-Mast
Electrical Data:
- Type: 4 elements Yagi
- Radiation: Directional
- Polarization: Linear Vertical or Horizontal
- Frequency range: 300-500 MHz @ SWR =2 No tuning required
- Systems: 70cm-HAM, TETRA-350, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
- Gain: 5.85 dBb - 8 dBi
- Max Power: 150 W (CW)
- Grounding protection: DC-Ground
- Connector: N-female
Mechanical Data:
- Materials: Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber
- Dimensions (approx): 480 x 600 mm / 1.57 x 1.97 ft
- Weight (approx): 1300 gr / 2.87 lb
- Mounting type: On-Mast
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Sirio |
