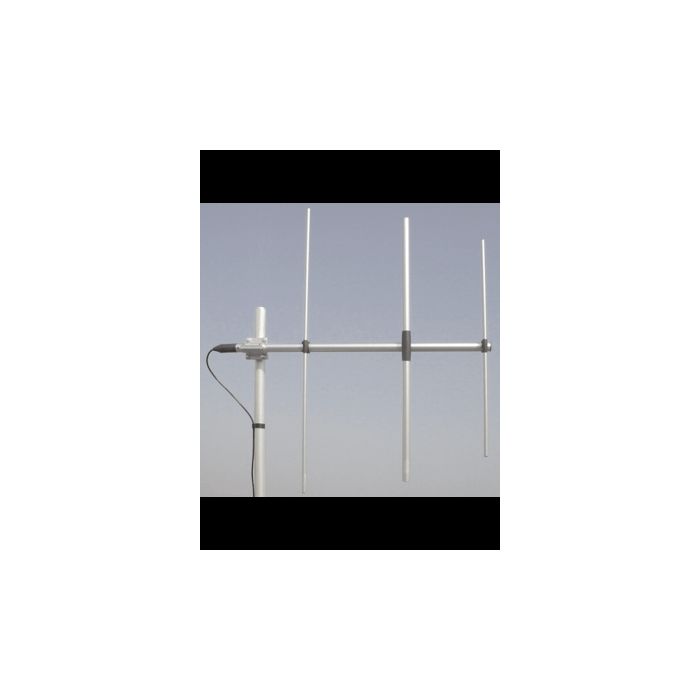

Sirio WY108-3N Basisantenne VHF Airband

3 Element Yagi, 108-137 Mhz, N-Female, max 200 Watt

• P/N: 2113501/108           WY 108-3N

Electrical Data:

• Type:     3 elements Yagi
• Radiation:           Directional
• Polarization:       Linear Vertical or Horizontal
• Frequency range:             108-137 MHz No tuning required
• Systems:              VHF Airband
• Gain:     4.85 dBd - 7 dBi
• Max Power:        200 W (CW)
• Grounding protection:    DC-Ground
• Connector:         N-female

Mechanical Data:

• Materials:           Anodized Aluminium, Nickel plated brass, Thermoplastic UV stabilized, EPDM rubber
• Dimensions (approx):      1400 x 910 mm / 4.59 x 2.99 ft
• Weight (approx):              1860 gr / 4.1 lb
• Mounting type:  On-Mast
