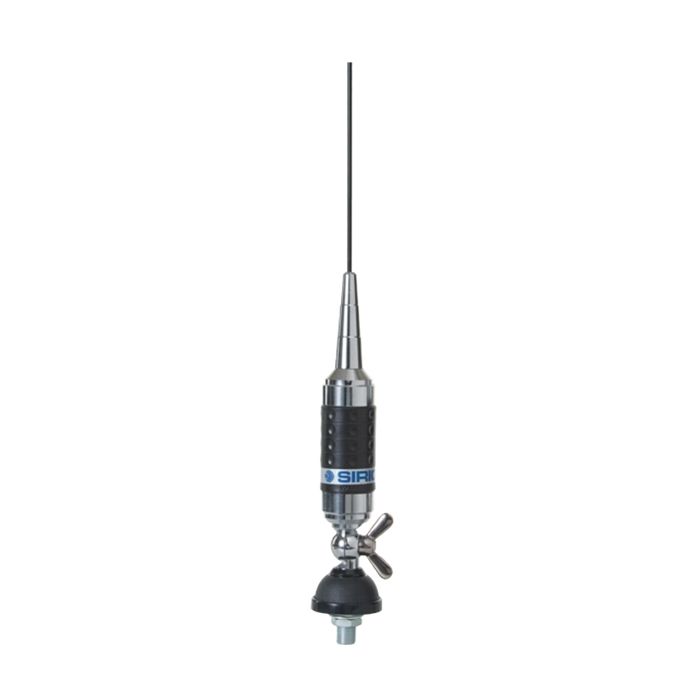

Sirio Super Carbonium-27 CB Mobile Antenne
Art.nr. 9876
Op voorraad
Excl. BTW
€ 45,00
€ 37,19
CB-27Mhz Mobile antenne Lengte=140cm, incl. 4 m RG58, Whip Stainless steel
Description
N mount, Whip Stainless Steel, 113 cm, 25 Watts Continuous, 150 Watts Short Time, 1620 KHz. The sirio super carbonium-27 comes with 4 mtr coax cable excl. PL-259 connector.
Specificaties
CB/10m Mobile antenna
Tunable from 27 to 28.5 MHz
17/7 PH tapered stainless steel whip
180 inclination and adjustable whip, detachable for car-wash
Suitable for magnetic mount
Type: CB base loaded
Frequency range: 27-28.5 MHz
Impedance: 50O unbalanced
Radiation (H-plane): 360 omnidirectional
Polarization: vertical
Bandwidth at S.W.R. 2:1: 1850 KHz
S.W.R. at res. freq.: = 1.2:1
Max. power: 35 Watts (CW) continuous, 250 Watts (CW) short time
Standard mount : N
Cable lenght / Type : 4 m / RG 58
Overige kenmerken
Materialen: Brass, koper, nylon, Stainless Steel
Lengte 1400 mm
Gewicht 480 gr
Montage opening 12.5mm diameter
N mount, Whip Stainless Steel, 113 cm, 25 Watts Continuous, 150 Watts Short Time, 1620 KHz. The sirio super carbonium-27 comes with 4 mtr coax cable excl. PL-259 connector.
SI 2204206.01
Specificaties
- CB/10m Mobile antenna
- Tunable from 27 to 28.5 MHz
- 17/7 PH tapered stainless steel whip
- 180 inclination and adjustable whip, detachable for car-wash
- Suitable for magnetic mount
- Type: CB base loaded
- Frequency range: 27-28.5 MHz
- Impedance: 50O unbalanced
- Radiation (H-plane): 360 omnidirectional
- Polarization: vertical
- Bandwidth at S.W.R. 2:1: 1850 KHz
- S.W.R. at res. freq.: = 1.2:1
- Max. power: 35 Watts (CW) continuous, 250 Watts (CW) short time
- Standard mount : N
- Cable lenght / Type : 4 m / RG 58
Overige kenmerken
- Materialen: Brass, koper, nylon, Stainless Steel
- Lengte 1400 mm
- Gewicht 480 gr
- Montage opening 12.5mm diameter
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Sirio |
