Sirio SO 4G LTE 4DBI

Art.nr. 1985

Op voorraad

Excl. BTW € 59,96 € 49,55

Antenna 790-960 MHz & 1710-2700 MHz, no tuning required, incl. 5mtr cable

P/N: 2111520.80 SO 4G LTE with 5 meter cable

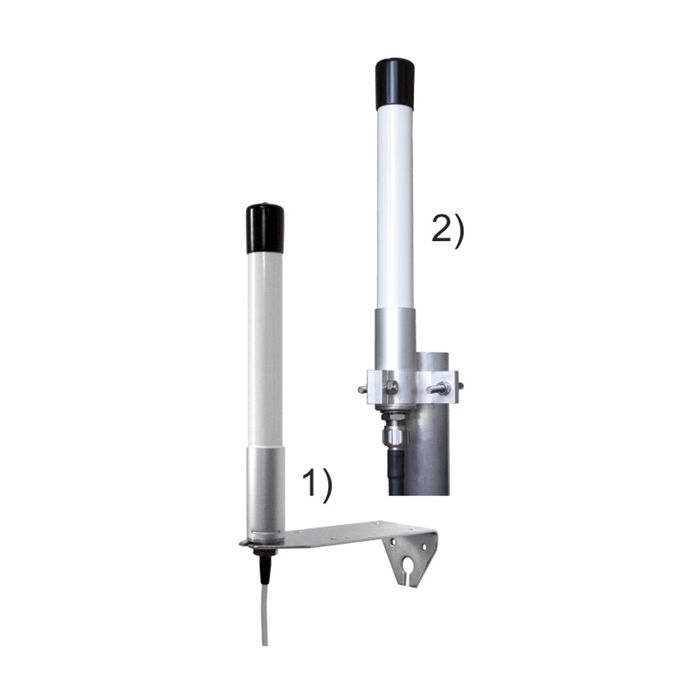

LET OP: HET BETREFT HIER AFBEELDING 1: INCL. CABLE

Electrical Data:

Type: Colinear dipole array

Radiation: Omnidirectional

Polarization: Linear vertical

Frequency range: 790-960 MHz & 1710-2700 MHz No tuning required

Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT

Gain: 2 dBi @ 790-960 MHz

4 dBi @ 1.71-2.7 GHz

Max Power: 25 Watts

Connector:

SO 4G LTE:

N-female

SO 4G LTE W/Cable:

SMA-male, Other type on request

Mechanical Data:

Materials: Aluminium, Anodized Aluminium, Nickel plated brass, Stainless steel, Galvanized steel

Height (approx): 300 mm / 0.98 ft

Weight (approx):

SO 4G LTE:

230 gr / 0.51 lb

SO 4G LTE W/Cable:

495 gr / 1.09 lb

Mounting type:

SO 4G LTE:

On-Mast

SO 4G LTE W/Cable:

On-Mast, On-Wall

Electrical Data:

Type: Colinear dipole array
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 790-960 MHz & 1710-2700 MHz No tuning required
Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT
Gain: 2 dBi @ 790-960 MHz
4 dBi @ 1.71-2.7 GHz
Max Power: 25 Watts
Connector:
SO 4G LTE: N-female
SO 4G LTE W/Cable: SMA-male

Mechanical Data:

Materials: Aluminium, Anodized Aluminium, Nickel plated brass, Stainless steel, Galvanized steel
Height (approx): 300 mm / 0.98 ft
Weight (approx):
SO 4G LTE:
230 gr / 0.51 lb
SO 4G LTE W/Cable:
495 gr / 1.09 lb
Mounting type: SO 4G LTE:On-Mast, SO 4G LTE W/Cable: On-Mast, On-Wall
