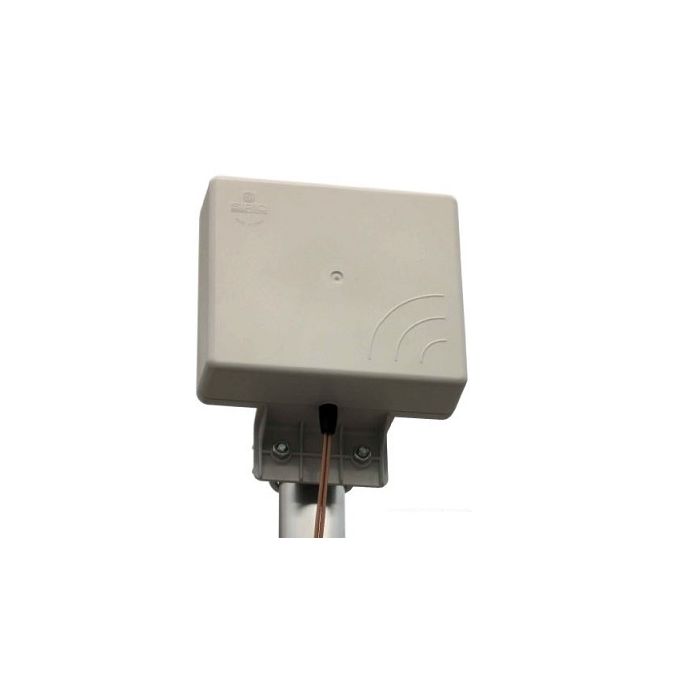

Sirio SMP-LTE 4G MIMO

Art.nr. 1987

Op voorraad

Excl. BTW € 81,51 € 67,36

Base station antenna, Directional, 2 x 30cm cable, 2 x SMA male

Description

Features:

Base station antenna, Directional

Very Compact, Dual-band

2x Wide band elements in single case

High quality whip made of PCB protected by thermoplastic UV stabilized radome

For 4G LTE & MiMo systems

For Indoor and Outdoor use

Part Numbers:

P/N 2111403.00 SMP 4G LTE MiMo

Electrical Data

Type: Mini Panel Antenna

Frequency range: 790-960 MHz & 1700-2700 MHz for GSM, 4G, LTE, WLAN 2.4 systems

Impedance: 50O

Radiation (H-plane): beamwidth @ -3 dB = 63° @ 875; 60° @ 1940 MHz 50° @ 2500 MHz

Radiation (E-plane): beamwidth @ -3 dB = 115° @ 875; 100° @ 1940 MHz 48° @ 2500 MHz

Radiation angle: 0°

Front to back ratio:

= 10 dB @ 790-960 MHz

= 15 dB @ 1.71-2.7 GHz

Correlation coefficent: < 0.1 for all bands

Element isolation:

= 10 dB @ 790-960 MHz

= 15 dB @ 1.71-2.7 GHz

Polarization: linear vertical

Gain:

5 dBi @ 790-960 MHz

8 dBi @ 1.71-2.7 GHz

SWR in bandwidth: = 2.0 all bands

Max. power (CW) @ 30°C:

20 Watts @ 790-960 MHz

8 Watts @ 1.71-2.7 GHz

Cable type / Lenght: 2x Brown RG316 / 30 cm

Connector: 2x SMA-male

Mechanical Data

Housing & Radome material: RAL 7035 grey thermoplastic UV stabilized

Bracket & Hardware material: Galvanized steel

Wind load / resistance: 40 N @ 150 Km/h / 180 Km/h

Wind surface: 0.02 m²

Dimensions (approx.): 154 x 134 x 46 mm without bracket

Weight (approx.): 400 gr

Operating temperature: -20° C to +80° C

Installation type:

mounting mast: Ø 25-42 mm whit U-bolt

wall: mounting screw (not included)
