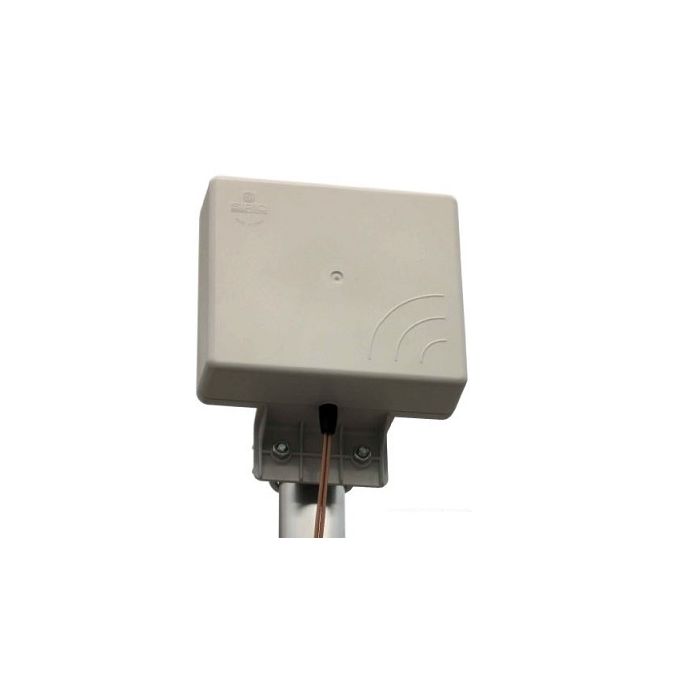

Sirio SMP-918-9 Panel Antenna

P/N: 2111003.00 SMP 4G LTE

Electrical Data:

• Type: Mini panel
• Radiation: Directional
• Polarization: Linear vertical
• Frequency range: 790-960 MHz & 1700-2700 MHz No tuning required
• Systems: GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz
• Gain: LTE 800 & GSM: 6÷7 dBi @ 790-960 MHz
• DCS: 9 dBi @ 1710-1880 MHz
• UMTS: 9 dBi @ 1920-2170 MHz
• LTE & WLAN: 8÷9 dBi @ 2300-2700 MHz
• Max Power: LTE 800 & GSM: 30 Watts (CW) @ 790-960 MHZ
• DCS: 15 Watts (CW) @ 1710-1880 MHz
• UMTS: 10 Watts (CW) @ 1920-2170 MHz
• LTE & WLAN: 10 Watts (CW) @ 2300-2700 MHz
• Cable lenght / type: 30 cm (11.81 in) / Low loss
• Connector: SMA-male, Other type on request

Mechanical Data:

• Materials: Galvanized steel, Thermoplastic UV stabilized, PCB
• Dimensions (approx): 154 x 134 x 46 mm / 0.51 x 0.44 x 0.15 ft
• Weight (approx): 400 gr / 0.88 lb
• Mounting type: On-Mast, On-Wall

Suitable Accessories:

Tilting bracket for SMP series
