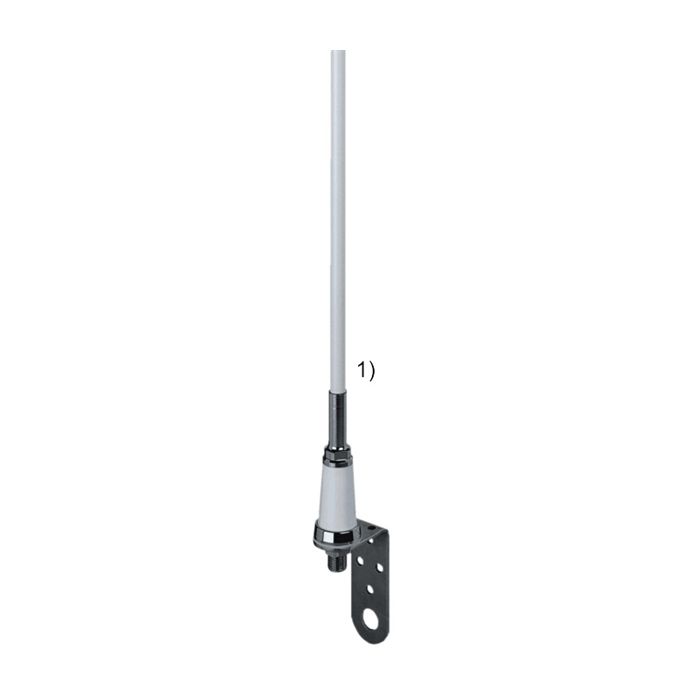

Sirio SB1S VHF Antenne (PL uitvoering)
Art.nr. 5287
Op voorraad
Excl. BTW
€ 54,95
€ 45,41
VHF Mast/Side Mount Antenna (0.95m) 0 dBd – 2.15 dBi 100W max, UHF-Female
Description
Electrical Data:
Type: 1/2 ?
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: TX band: 156 – 157.425 MHz @ SWR = 1.5
RX band: 156 – 162 MHz @ SWR = 2
Systems: VHF Marine Band
Gain: 0 dBd – 2.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Fiberglass, Nylon
Height (approx):
SB 1 S:
955 mm / 3.13 ft
SB 2 S:
1040 mm / 3.41 ft
Weight (approx):
SB 1 S:
360 gr / 0.79 lb
SB 2 S:
330 gr / 0.73 lb
Mounting type: On-Mast, On-Wall
Electrical Data:
- Type: 1/2 ?
- Radiation: Omnidirectional
- Polarization: Linear vertical
- Frequency range: TX band: 156 – 157.425 MHz @ SWR = 1.5
- RX band: 156 – 162 MHz @ SWR = 2
- Systems: VHF Marine Band
- Gain: 0 dBd – 2.15 dBi
- Max Power: 100 W (CW)
- Grounding protection: DC-Ground
- Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH, Fiberglass, Nylon
Height (approx): SB 1 S:955 mm / 3.13 ft
Weight (approx): SB 1 S:360 gr / 0.79 lb
Mounting type: On-Mast, On-Wall
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Sirio |
