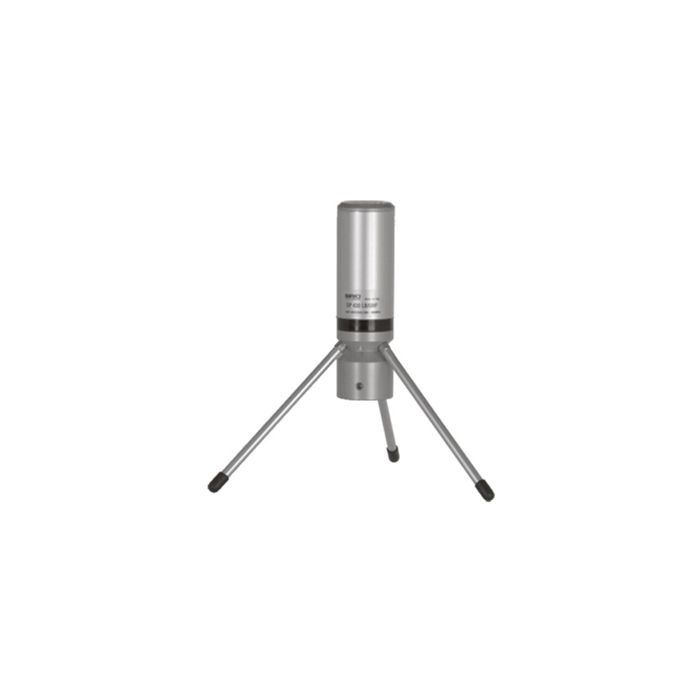

Sirio GP430LB/U SI 2103701.0U

UHF Basisantenne 380-480 Mhz, L=30cm, UHF female connector

• Type:     1/4 ? ground plane
• Radiation:           Omnidirectional
• Polarization:       Linear vertical
• Frequency range:             380–480 MHz @ SWR = 1.7 No tuning required
• Systems:              70cm-HAM, TETRA, CDMA-450, LTE-450, ISM/SIGFOX/LoRa 433MHz
• Gain:     0 dBd – 2.15 dBi
• Max Power:        300 W (CW)
• Grounding protection:    DC-Ground
• Connector:
• GP 430 LB U:
• UHF-female (SO-239)

Mechanical Data:

• Materials:           Anodized Aluminium, Stainless steel, Nylon
• Height (approx):               295 mm / 0.97 ft
• Weight (approx):              830 gr / 1.83 lb
• Mounting type:  On-Mast
