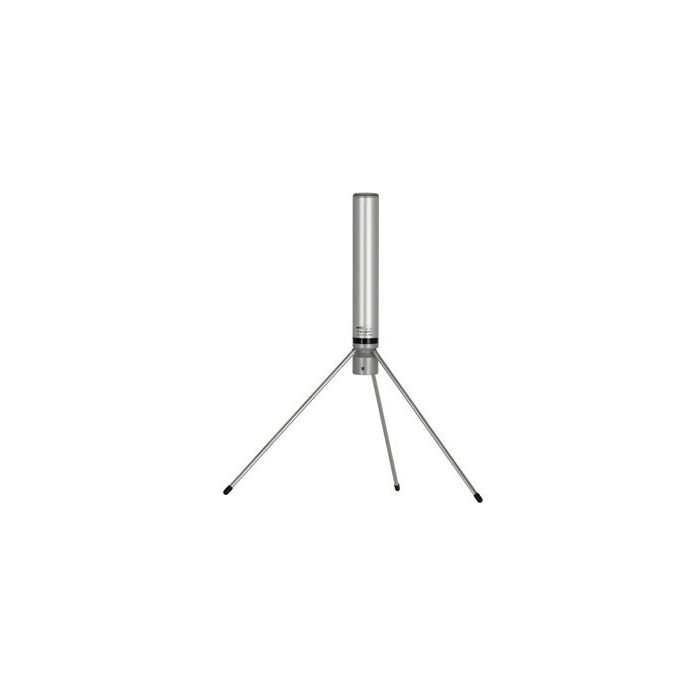

Sirio GP160 LB-N (N uitvoering)

Features:

- Base station antenna, Wide-band

- Unity-gain, Omnidirectional

- Protection from static discharges DC-Ground

- Perfect protection against the worst weather conditions

- Made of anodized aluminium alloy

- Stainless steel hardware

- Side mast mounting allowed by optional bracket FT-2 code 2510004.00

Part Numbers: P-N 2102001.00-N GP 160 LB-N Electrical Data - Type: 1-4? ground plane large band - Frequency range: GP 160 LB: 145-175 MHz @ SWR ?2 - Impedance: 50? - Radiation (H-plane): 360° omnidirectional - Radiation (E-plane): beamwidth @ -3 dB = 78° - Radiation angle: 0° - Polarization: linear vertical - Gain: 0 dBd - 2.15 dBi - Max. Power (CW) @ 30°C: 1000 Watts - Grounding protection: All metal parts are DC-grounded, the inner conductor shows a DC short - Connector:160 LB-N: N-female Mechanical Data - Materials: Anodized Aluminium, Stainless Steel, Nylon - Wind load - resistance: GP 160 LB: 43 N @ 150 Km-h - 160 Km-h - Wind surface: 0.06 m² - Height (approx.): GP 160 LB: 700 mm - Weight (approx.): GP 160 LB: 950 gr - Mounting mast: Ø 36-40 mm
