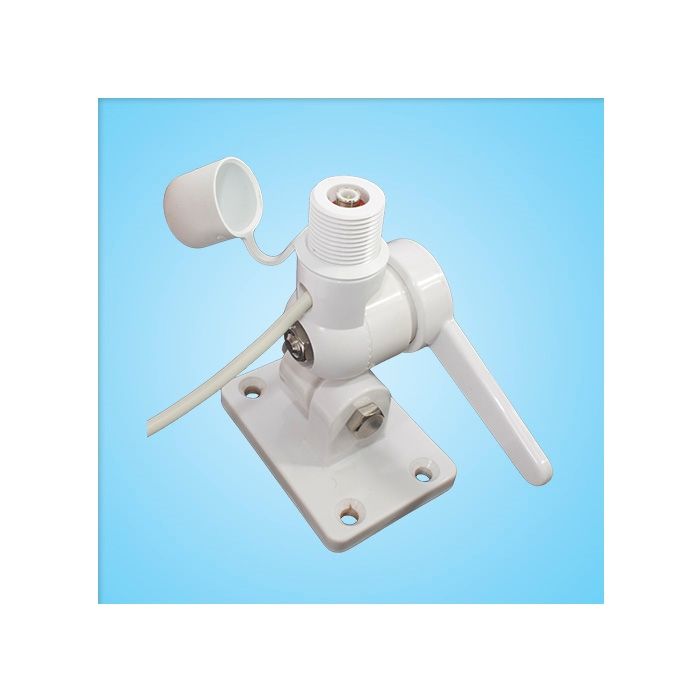

Shakespeare Quick Connect QCM-N Ratchet Mount

Art.nr. 5619
Op voorraad
Excl. BTW € 44,95 € 37,15
For QC-3, QC-4 antennas QuickConnect Nylon Ratchet Mount

Description

Versatile four-way ratchet action and fast-release handle design for quick and easy laydown. For deck or side mounting of QuickConnect antennas.
QuickConnect: Easy removal of an antenna without the hassle of re-installing cables
Thread: 1” -14 / Bolt holes: 9/32” dia. (7.14mm), 3” x ½” (76.2mm x 12.7mm) on center
Water and dust protection cap: Stays fastened to mount to prevent it from getting lost
Centerpin® PL-259 Connector: Included for easy solder-free installation
Handles antennas up to 4’ (1.2m)
Nylon
Note: To be used with QuickConnect antennas only.

Versatile four-way ratchet action and fast-release handle design for quick and easy laydown. For deck or side mounting of QuickConnect antennas.


  • QuickConnect: Easy removal of an antenna without the hassle of re-installing cables
  • Thread: 1” -14 / Bolt holes: 9/32” dia. (7.14mm), 3” x ½” (76.2mm x 12.7mm) on center
  • Water and dust protection cap: Stays fastened to mount to prevent it from getting lost
  • Centerpin® PL-259 Connector: Included for easy solder-free installation
  • Handles antennas up to 4’ (1.2m)
  • Nylon
  • Note: To be used with QuickConnect antennas only.
Style QCM-N
Construction:nylon
Mount type:ratchet
Mounting hardware:Not included
Coax Supplied:20ft (6.09m) of RG-58
Connector Supplied:Centerpin® Crimp-on type PL-259

Meer Lezen
Meer informatie
Vrachttype N
Vergunning Nee
Merk Shakespeare Quick Connect
