Shakespeare Quick Connect QC-3 Marine Antenne

Art.nr. 5647

Op voorraad

Excl. BTW € 44,95 € 37,15

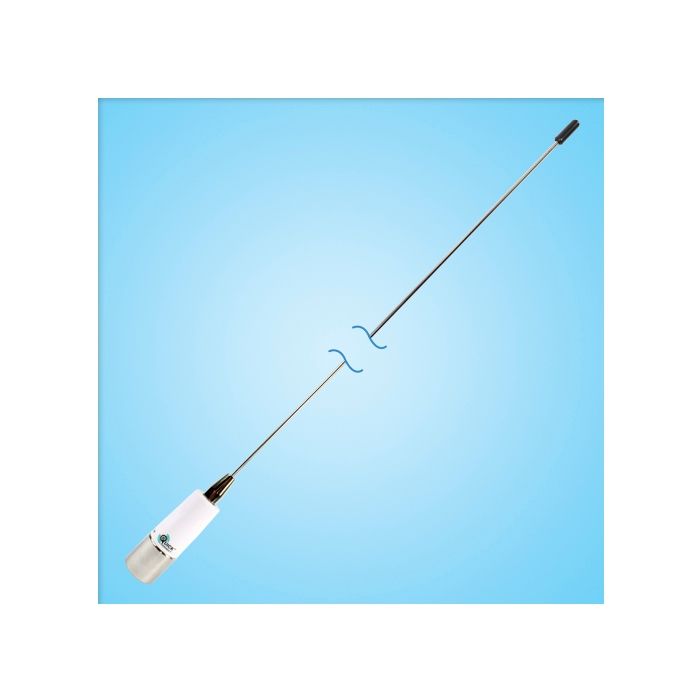

VHF Quick Connect Antenna (0.9m)

Description

Stemming from the popularity of the quick connecting feature on Shakespeare’s high-end Phase III® marine antennas, the new QuickConnect® product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.

QuickConnect® system, screw or unscrew antenna to disconnect or connect

High quality connection so that no noise is generated due to vibrations

Splash protection cap to protect the connector on the mount when antenna is disconnected

Centerpin® PL-259 Connector is an easy crimp-on type connector

Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount

Note: To be used with QuickConnect® mounts only.

QuickConnect® system, screw or unscrew antenna to disconnect or connect
High quality connection so that no noise is generated due to vibrations
Splash protection cap to protect the connector on the mount when antenna is disconnected
Centerpin® PL-259 Connector is an easy crimp-on type connector
Standard mount design to easily upgrade to a high-end Shakespeare antenna without purchasing a new mount
Note: To be used with QuickConnect® mounts only.

QC-3 QuickConnect® Specifications
Band:	VHF Marine Band
Antenna Gain:	3dB
Max. Input Power:	50 watts
SWR:	Nominally 1.3:1 at 156.8 MHz
Bandwidth:	5 MHz within 2.0:1 VSWR
Ferrule:	Chrome-Plated Brass
Coax Supplied:	N/A
Connector Supplied:	N/A
Color/finish:	SS Whip / White Plastic Body
Polarity:	Vertical
Impedance:	50 Ohms (with QC Mount attached)
DC Ground:	No DC Ground – The antenna will read open on continuity test.
