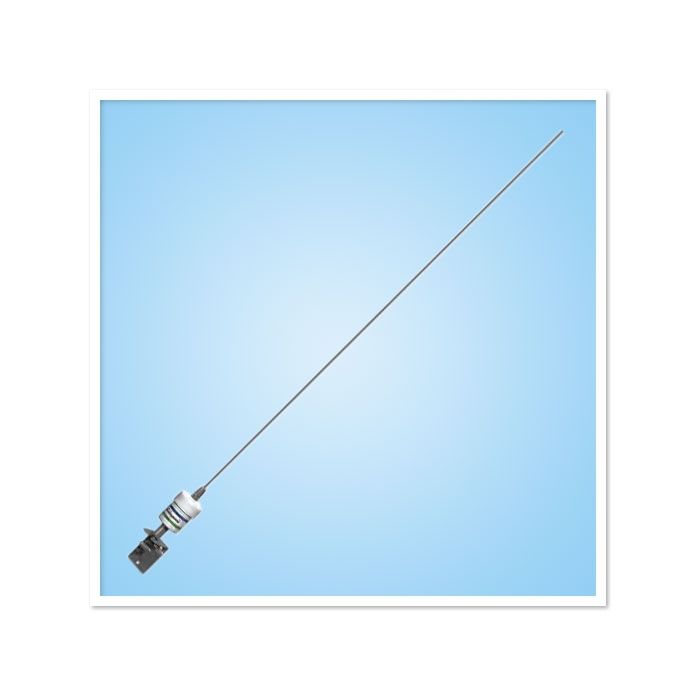

Shakespeare 5215-AIS Marine Antenne
Art.nr. 5621
Niet op voorraad
Excl. BTW
€ 69,95
€ 57,81
AIS Mast/Side Mount Antenna (0.9m)
Description
Classic VHF Squatty Body® Antenna
3' (0.9m) VHF Marine Band 3dB Gain
Communication performance over VHF marine frequencies is optimized with the master craftsmanship of this Classic 5215 Squatty Body®, built with extra bandwidth for all popular AIS transceivers. The lightweight, low-profile, stainless steel VHF antenna stands at 3' tall and is designed for masthead mounting to enhance transmission quality.
• Designed specifically for VHF transceivers
• Sealed, tin-plated copper wire coil
• Stainless steel body and 36? whip
• SO-239 connector
• Mount: Stainless steel “L” bracket supplied
Classic VHF Squatty Body® Antenna
3' (0.9m) VHF Marine Band 3dB Gain
Communication performance over VHF marine frequencies is optimized with the master craftsmanship of this Classic 5215 Squatty Body®, built with extra bandwidth for all popular AIS transceivers. The lightweight, low-profile, stainless steel VHF antenna stands at 3' tall and is designed for masthead mounting to enhance transmission quality.
• Designed specifically for VHF transceivers
• Sealed, tin-plated copper wire coil
• Stainless steel body and 36? whip
• SO-239 connector
• Mount: Stainless steel “L” bracket supplied
| Shakespeare 5215 Squatty Body® Specifications | |
| Band: | VHF Marine Band |
| Antenna Gain: | 3dB |
| Max. Input Power: | 50 watts |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Bandwidth: | 7 MHz within 2.0:1 VSWR |
| Ferrule: | L-bracket and retaining nut, SO-239 connector |
| Polarity: | Vertical |
| Impedance: | 50 Ohms |
| DC Ground: | No DC Ground – The antenna will read open on continuity test. |
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Shakespeare |
