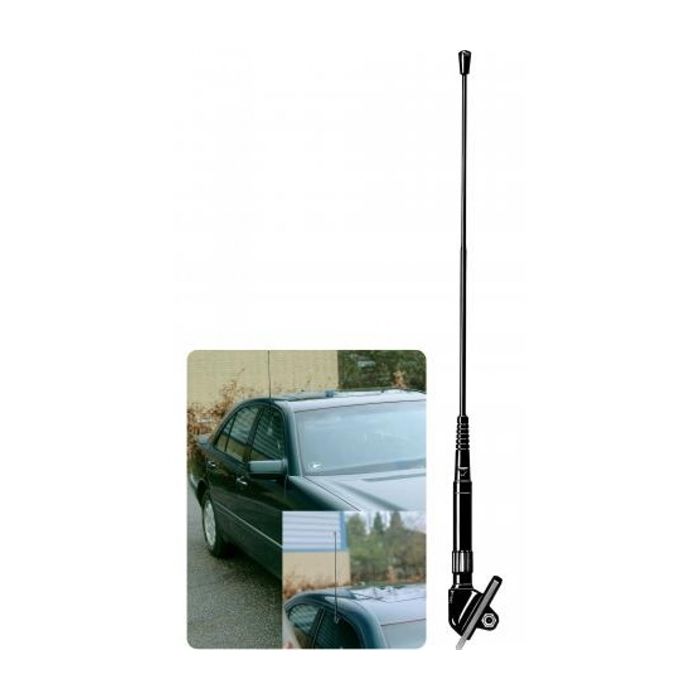

Procom SF401/CEL2 UHF Antenne

2 dB Mobile Sidefix® Click Antenna for the 440-455 MHz Band

Description

End-fed half-wave dipole in highly flexible polyethylene covered StraightFlex.

2 dB gain compared to a standard ¼ ? roof mount antenna.

Groundplane independent due to half-wave design.

For temporary antenna installations.

Mounting on side-windows using a simple “clip-on” procedure.

Provided with FME-connection (cable to be ordered separately).

Specifications

Electrical

• Model   SF 401/...
• Frequency           380 - 470 MHz covered by five models
• Antenna Type     End-fed ½ ? dipole mobile antenna
• Max. Input Power            25 W
• Polarisation        Vertical
• Impedance         50 O
• VSWR    = 1.3:1 @ f.res.
• Bandwidth          = 25 MHz @ VSWR = 1.5
• Gain (EIA RS-329-1)         2 dB

Mechanical

• Materials            Whip: Polyethylene-covered StraightFlex steel wire
• Black-chromed brass
• Mount: Weather- and shockproof plastics
• Brass
• Cable     FME-cable to be ordered separately
• Colour   Black
• Height   Approx. 360 mm / 14.17 in.
• Weight  Approx. 0.086 kg / 0.19 lb.
• Mounting            "Clip-on" mounting on the side-window
