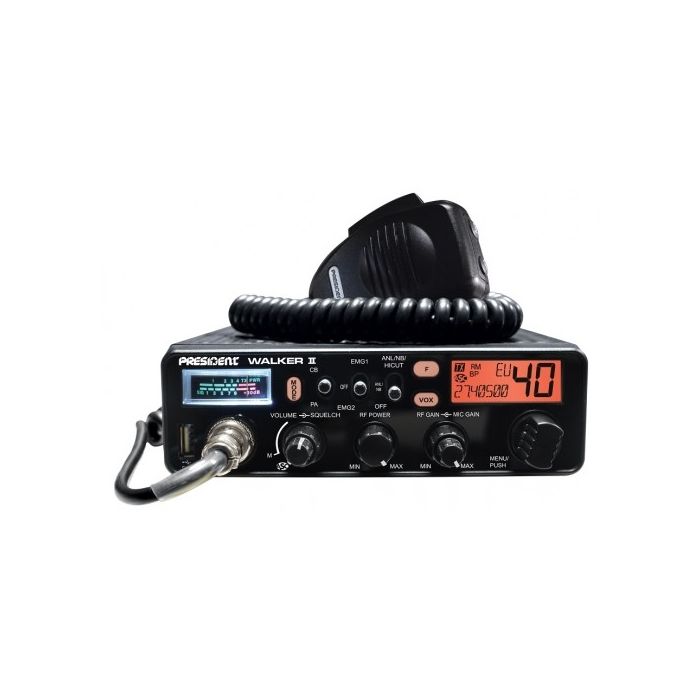

President Walker-2 4 Watt AM / 4 Watt FM CB

• 40 channels AM / FM

• Channel rotary switch

• Volume adjustment and ON/OFF

• Manual squelch and ASC

• Multi-functions LCD display

• Frequencies display

• S/RF vu-meter

• Public Address

• Scan

• Talkback

• Beep Function

• Roger Beep

• Tone

• ANL filter, NB, HI-CUT

• RF Gain / Mike gain

• RF Power

• Mic type electret / dynamic

• F function key

• VOX

• Mode switch AM / FM

• Preset emergency (EMG 1/2)

• SWR (Power Reading /SWR)

• Front microphone plug

• External loudspeaker jack

• USB 5V 2.1A

General

• Number of channels: 40

• Modulation modes: AM / FM

• Frequency ranges: from 26.965 MHz to 27.405 MHz

• Antenna impedance: 50 Ohms

• Power supply: 12 V

• Size: 170 (L) x 160 (H) x 52 (D) mm

• DIN Size: Yes

• Weight: 1,1 kg

• Accessories supplied:

…power cord with fuse

…1 microphone UP/DOWN and its hanger

…1 mounting bracket with fixing screws

Transmission

•  Frequency allowance: +/- 200 Hz

• Carrier power: 4 W AM / 4 W FM

• Transmission interference: inferior to 4 nW (- 54 dBm)

• Audio response: 300 Hz to 3 KHz in AM/FM

• Emitted power in the adj. channe : inferior to 20 µW

• Microphone sensitivity: 3.0 mV

• Drain: < 2 A (with modulation)

• Modulated signal distortion: 1,8 %

Reception

• Maxi. sensitivity at 20 dB sinad:

…0.5 µV - 113 dBm (AM)

…0.35 µV - 116 dBm (FM)

• Frequency response: 300 Hz to 3 kHz in AM/FM

• Adjacent channel selectivity: 60 dB

• Maximum audio power: 3 W

• Squelch sensitivity:

…Minimum 0.2 µV - 120 dBm

…Maximum 1 mV - 47 dBm

• Frequency image rejection rate: 60 dB

• Intermediate frequency rej. rate: 70 dB

• Drain: 180 ~ 500 mA maximum

PACKING INCLUDES:

1 Pc of Tranceiver

1 Pc of Microphone

1 Pc of Power cable

1 Pc of Bracket

1 Set of Mounting Materials

1 pc of User Manual in French, English, Spanish, Polish
