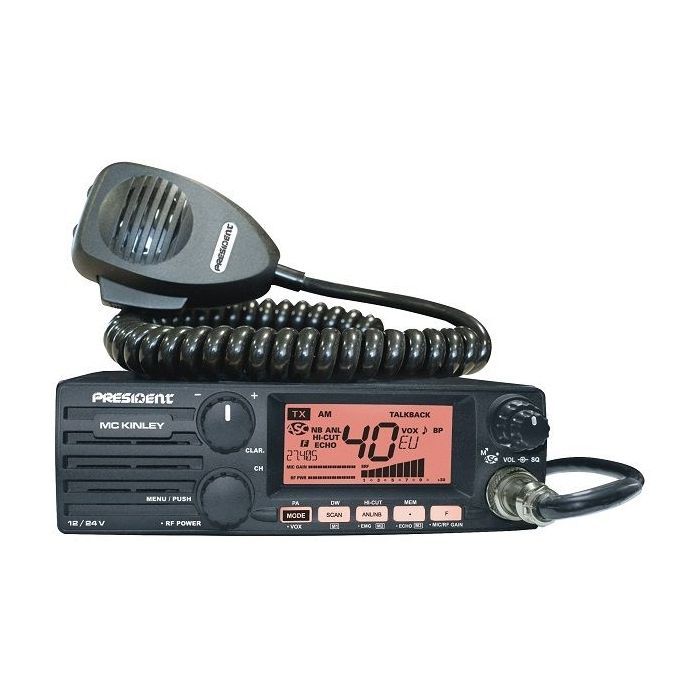

President MCKinley CB Transceiver

• Frequency Range: 40 Channels (26.965 - 27.405 MHz)

• Standards:  6 European Standards

• Modulation Modes: AM / FM  / SSB

• Output Power: 4 Watt AM / 4 Watt FM / 12 Watt SSB

• Power supply: 12 V / 24 V

• Display: 7 Colours

• Microphone: Electret Type, 6-Pin with President Wiring

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• 40 channels AM / FM / LSB / USB

• Volume adjustment and ON/OFF

• Manual squelch and ASC

• Multi-functions LCD display

• Frequencies display

• S-meter

• Vox function (Hands free)

• ANL filter , NB and HI-CUT

• RF Gain / Mic Gain

• RF Power

• Clarifier

• Channels and memories scan

• 3 Memories

• Dim

• F function key

• Beep Function

• Roger Beep

• Mode switch AM / FM / LSB / USB

• Dual watch

• Automatic SWR (Power Reading /SWR)

• Preset channel programmable (EMG 1&2)

• TOT (Time out timer)

• Front microphone plug

• Microphone Electret or Dynamic

• External loudspeaker jack

General

• Number of channels: 40

• Modulation modes: AM / FM / USB / LSB

• Frequency ranges: from 26.965 MHz to 27.405 MHz

• Antenna impedance: 50 Ohms

• Power supply: 12 V / 24 V

• Size: 170 (W) x 150 (D) x 52 (H)

• Weight: 1.1 kg

• Accessories supplied:

…power cord with fuse

…1 microphone UP/DOWN and its hanger

…1 mounting bracket with fixing screws

Transmission

• Frequency allowance: +/- 300 Hz

• Carrier power: 4 W AM / 4 W FM / 12 W USB / 12 W LSB

• Transmission interference: inferior to 4 nW (- 54 dBm)

• Audio response: 300 Hz to 3 KHz in AM/FM/USB/LSB

• Emitted power in the adj. channel: inferior to 20 µW

• Microphone sensitivity: 3,0 mV

• Drain: 3 A (with modulation)

• Modulated signal distortion: 1,8 %

Reception

• Maxi. sensitivity at 20 dB sinad: 0.5 µV - 113 dBm (AM/FM) / 0.28 µV - 118 dBm (USB/LSB)

• Frequency response: 300 Hz to 3 kHz in AM/FM

• Adjacent channel selectivity: 60 dB

• Maximum audio power: 3 W

• Squelch sensitivity:

…minimum 0.2 µV - 120 dBm

…maximum 1 mV - 47 dBm

• Frequency image rejection rate: 60 dB

• Intermediate frequency rej. rate: 70 dB

• Drain:

…400 mA nominal

…1000 mA maximum

PACKING INCLUDES:

1 Pc of Transceiver

1 Pc of Bracket

1 Pc of Microphone

1 Pc of Power Cable

1 Pc of Mounting materials

1 Pc of User Manual in English, French, Spanish, Polish
