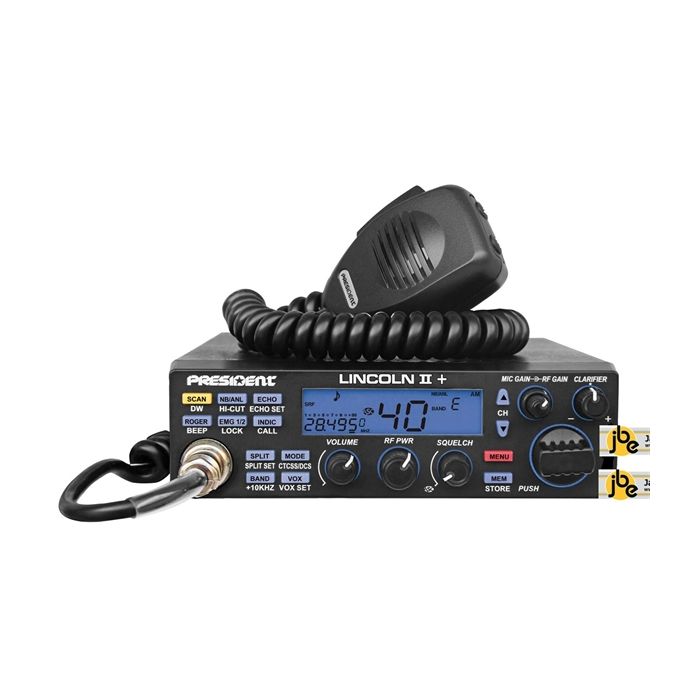

President Lincoln-2 V3 Plus Versie (Lincoln-2+)

FEATURES, FUNCTIONS AND SPECIFICATIONS:

- Rotary switch and Up/down channel selector

- VFO Mode

- Volume adjustment and ON/OFF

- RF Power

- Manual squelch and ASC

- Multi-function LCD display

- Frequencies display

- S-meter

- Public Address

- Vox function (Hands free)

- ANL filter , NB and HI-CUT

- RF Gain / Mike gain

- Clarifier

- Channels and memories scan

- 6 Memories

- CTCSS (38 tones)

- DCS (104 codes)

- Dim

- MENU fonction key

- Beep Function

- Roger Beep

- Mode switch AM/FM/LSB/USB/CW

- Dual watch

- Key locking

- SWR (Power Reading /SWR)

- Preset 9/19

- TOT (Time Out Timer) adjustable

- Front microphone plug

- External loudspeaker jack

NOTE: This transceiver has RX-Audio without the microphone plugged in.

PACKING INCLUDES:

1 Pc of Transceiver

1 Pc of Power Cord with Fuse

1 Pc of Microphone and its hanger

1 Pc of Mounting Bracket with Fixing Screws

1 Pc of User Manual

MICROPHONE:

6-Pin Microphone, Up/Down function, President Wiring.

MICROPHONE WIRING:

Pin 1 Modulation

Pin 2 RX

Pin 3 TX - UP/DOWN

Pin 4

Pin 5 Ground

Pin 6 Power Supply
