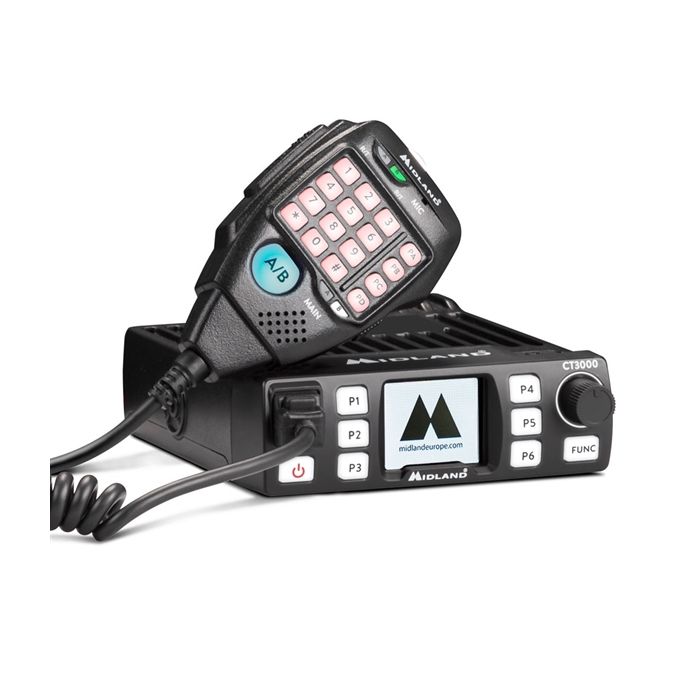

Midland CT3000 Amateur Transceiver C1325 SALES

CT3000 is the first mobile dual band transceiver designed by Midland operating on the VHF/UHF bands 144-146 and 430-440MHz.

CT3000 is a sort of «professional» radio as it is equipped with 6 customizable buttons on the front panel (P1-P6) suitable for the selection of many functions. Each of these keys can be assigned 2 functions simultaneously belonging to two different menus. To guarantee excellent communications also in a wide range, CT3000 boasts a high transmission power selectable amongst: 25W (high), 10W (middle) or 5W (low).

Its aluminum chassis makes of CT3000 a tough radio suitable to use also in extreme situations.

The compliance to the IP54 certification ensures a high protection against dust and water spray and allows an outdoor use of the device.

CT3000 is equipped with the «flip» function: even though the radio is rotated 180°, the indications on the display will correctly appear in either orientation.

The wide multi-color display clearly shows all parameters and settings.

CT3000 is supplied with many functions such as the automatic digital squelch adjustable in different levels, the automatic turning on/off, TOT (Time-Out- Timer), scan, dual watch and roger beep.

CT3000 has 200 memory channels (customizable), 51 CTCSS tones and 104+104 DCS codes.

CT3000 is programmable through the optional programming software PRG-3000 cod. C1352.

Main features

• Dual band VHF/UHF transceiver

• Operating mode: UHF-VHF, VHF-VHF or UHF-UHF

• Frequency bands (according to the country/area of use): 144-146 MHz & 430-440MHz (Rx / Tx).

• Dual band (VHF/UHF) displayed

• Channel number or channel number + frequency displayed

• Selectable output power: high (25W), middle (10W) or low (5W)

• Wide colorful TFT display

• Flip function 180°

• Power supply 12,6V +/- 10%

• Metal chassis

• Programmable channels

• Scan of the memory channels

• Digital automatic squelch adjustable in different levels

• Scan, Dual Watch, Roger Beep functions

• 200 memory channels customizable

• Time Out Timer

• Adjustable backlight

• Automatic turning on/off

• Keypad lock

• Microphone (RJ45 connector) with multifunction keypad

• Software programmable (through the optional programming software PRG-3000 cod. C1352)

• Repeater tones (1750/2100/1000/1450 Hz)

• 104 + 104 inverted DCS codes and 51 CTCSS tones

• Bandwidth selectable in 3 different levels 25 kHz/20 kHz/12,5 kHz

• Frequency inversion

• Frequency step: 2,5 kHz - 5 KHz - 6,25 kHz - 10 kHz - 12,5 kHz - 20 kHz - 25 kHz - 30 kHz - 50 kHz.

• Frequency offset and offset direction selectable

Content of the packaging

• CT3000 transceiver with power cable

• Microphone

• Mounting bracket

• Fixing screws

• Protection fuse
