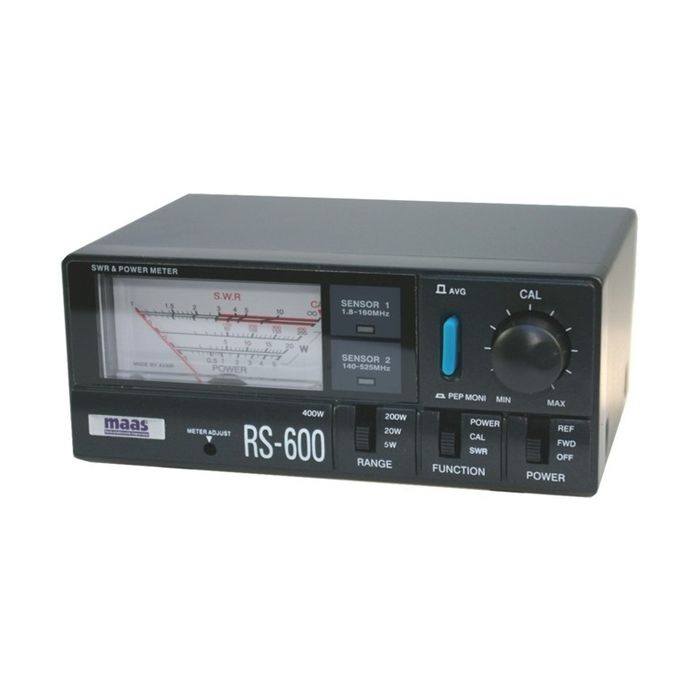

Maas RS-600 SWR Powermeter

The RS-600 has two separate entrances for different frequency ranges.

Technical Data :

• Frequency range 1.8 - 160 MHz - 140 - 525 MHz
• Performance 400 W (switchable 5 W - 20 W - 200 - 400 W)
• Minimum power for SWR measurement: 0.5 W
• Accuracy
• @ 5W Range: +--5%
• @ 5W Range: + - -5%
• @ 20W Range: +--7,5%
• @ 20W Range: + - -7.5%
• @ 200W Range: +--10%
• @ 200W Range: + - -10%
• @ 400W Range: +--12,5%
• @ 400W Range: + - -12.5%
• illuminated meter (6.7 x 3.3 cm)
• can be adjusted (0 adjustment)
• AVG key
• 13,8V DC Power supply for backlight: 13.8 V DC
• DC cable included
• Connections N-female Insertion loss: 0.2 dB
• Dimensions (W x H x D in mm) 152 x 68 x 102
