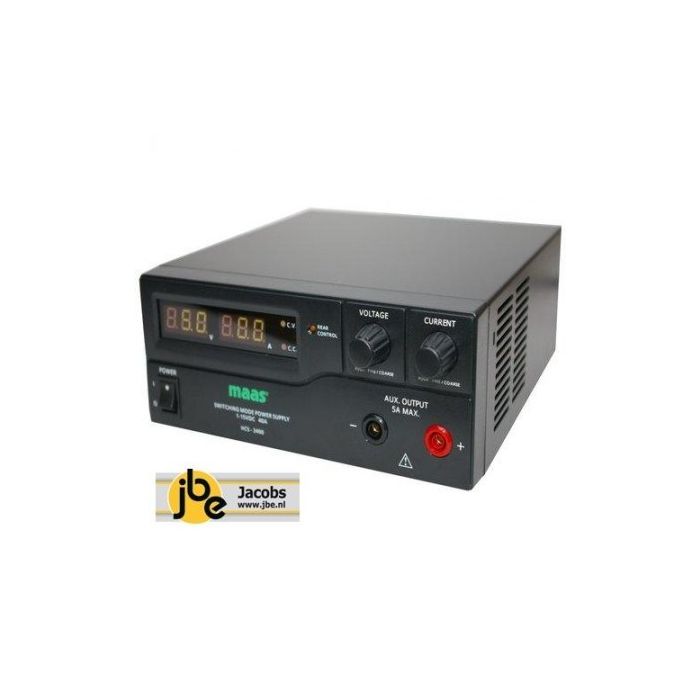

Maas HCS-3400

Specifications : Operating voltage 200-240 VAC 50-60 Hz Output voltage 1-15 volts DC regulated Output current 0-40 amps adjustable Efficiency 85.5% Ripple & Noise (Rms) voltage: 5 mV peak-peak voltage: 50 mV Voltage Regulation Load Voltage Regulation (10-100% load): 50 mV Voltage Regulation Line (170-264V AC): 20 mV Current Regulation Current Regulation Load: 150 mA Current Regulation Line (170-264V AC): 50 mA Power Factor Control Power factor correction> 0.95 at optimal load Features & Facilities Digital display (2 x 3-digit LED for Volt and Ampere separately Output connectors on the front for small consumers (up to 5 amps) Main ports on the back (up to max. 40 amps) Socket for remote control on the back (wired remote control is possible) Controller for volts and amps can be converted in behavior. Either "smooth" and very precise and simply faster Security Protection against overload Overvoltage protection (AC input) Protection against overheating Glass fuse accessible from the outside (next to the power inlet) Dimensions (WxHxD) 220 x 90 x 215 mm Weight about 2.6 kg Delivery MAAS HCS-3400 power supply AC power cord plug with chocolate NC plugs for DIY Remote Control Instructions
