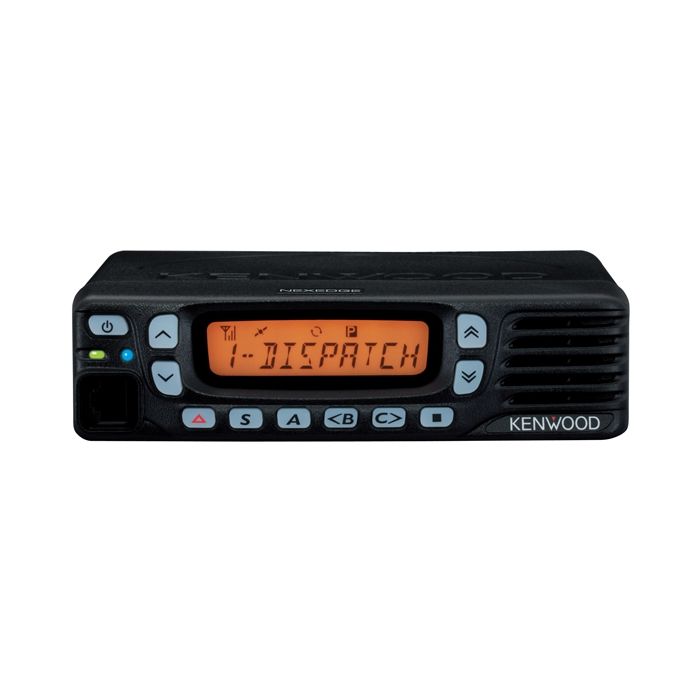

Kenwood NX-720E VHF Nexedge Mobilofoon

NXDN Air Interface

AMBE+2 Vocoder for Natural Sounding Digital Voice

Operates in NXDN Digital Conventional and FM Analogue Modes, even on the same channel

Autosenses Received Mode (Digital or Analogue)

Digital Conventional and Digital Trunking Modes

Multi-Site Digital Trunking, up to 60000 GIDs and 60000 UIDs Per Network

Multi-Site IP Network Compatible

True 6.25 kHz Channel Spacing Operation

Includes Radio-to-Radio Mode (no repeater needed)

Requires Optional Microphone

D.C. Cable

Yes

Fuse

Yes

Instruction Manual

Yes, English, Spanish, German, French, Dutch, Italian, Turkish & Greek

Mounting Bracket

Yes

Screw Set

Yes

Blue colour LED

Yes

3-colour LED (Red, Orange, Green)

Yes

2-Tone Signalling

Yes

5-Tone Signalling formats

Adjustable LCD Backlighting

Yes

Busy Channel Lock-out

Yes

Calling Alert

Yes

Character Display (Alphanumeric)

Yes

Compact Design

Yes

Companded Audio

Yes

Data Mode Operation

Yes - Transparent Data

DB-15 Accessory Connector

Yes; can also be programmed as 8 individual Accessory Ports

Digital ANI Built-in

Yes

DTMF Function

Yes

Ease of Operating Use

Yes

Emergency Call Function

Yes

Emergency Key

Yes

Enhanced Kenwood Audio

Yes

Flash Upgradeable Firmware

Yes

FleetSync/FleetSync II

Yes

Front-mounted Loudspeaker

Yes

Ignition Sense Input and Cable Option

Yes

Kenwood ESN (Electronic Serial Number)

Yes

MDC-1200

Yes

Minimum-Volume Setting

Yes

Monitor Button

Yes

Multiple Scanning Function

Yes

Operator Selectable Tone

Yes

Power-On Message

Yes

Programmable Function Keys

10 Programmable Function Keys

PTT ID

Yes

QT (CTCSS) / DQT (digital)

Yes

Remote Stun and Revive

Yes

RSSI Level Indicator

Yes

SelCall Function

Yes

Short/Long Text Messaging

Yes

Talk Around

Yes

"Talk Back" Scanning Function

Yes

Time-Out Timer

Yes

Transparent Data Mode

Yes

Voice Guide Channel Confirmation

Yes

Voice Inversion Scrambler

Yes

Wide-band Frequency Coverage

Yes

Windows PC Programming and Tuning

Yes

Alphanumerical Aliases

Yes

Auto-Roaming/Registration (Multi-Site Trunking Mode)

Yes

Broadcast Call (Trunking Mode)

Yes

Call Queuing with Priority

Yes

Channels GID

260

Dual priority Scan

Yes

Fail Soft Mode

Yes

FM Analogue Conventional Included

Yes

GIDs Per Network (Multi-Site Trunking Mode)

60000

Group Call (Trunking Mode)

Yes

Group Registration (Trunking Mode)

Yes

Individual Private Call (Trunking Mode)

Yes

Late Entry (Trunking Mode)

Yes

Message Trunked Mode

Yes

Multi-Site IP Network Compatible

Yes

NXDN Conventional Included

Yes

NXDN Digital 12.5/6.25kHz Channel Spacing

Yes

Over-the-air Alias

Yes

Over-the-air Programming

Yes, Requires OTAP Management Software

Priority Monitor IDs

Yes, 4 IDs

Radio Access Numbers (RAN)

Yes, 64, including "None"

Remote Group Add (Trunking Mode)

Yes

Remote Stun/Kill

Yes

Selcall - Individual and Group (Digital Mode)

Yes

Site Roaming (Digital Conventional Mode)

Yes

Special Alert Tone Patterns

Yes

Status Messaging

Yes

Telephone Interconnect Function

Yes, Requires KTI-4 and a teleco unit

Transmission Trunked Mode

Yes

UIDs Per Network (Multi-Site Trunking Mode)

60000

Wide Area All Group Call (Multi-Site Trunking Mode)

Yes

Zones

128

Group Calling

Yes

Power On/Off Status Messages

Yes

PTT ID Digital ANI

Yes

Selective Calling

Yes

Short Text Messages

Yes

Status Messaging

Yes

Emergency Encode/Decode

Yes

PTT ID Encode/Decode

Yes

Radio check Decode

Yes

Stun/Revive Decode

Yes

MIL-SPEC speaker mic. with programmable controls

Yes

R&TTE: EN300 086, 300 113, 300 219, 301 489, 301 166

Yes

R&TTE: EN300 440

Yes

EU Safety: EN60065, 60950-1, 60215

Yes

For use in the EU

Yes

IP54

Yes

Measurement - EIA Standards

Yes

Measurement - EN Standards

Yes

MIL-STD 810 C/D/E/F/G

Yes

Frequency Range - E Type

136-174 MHz

Number of Channels

260

Talk Groups

Yes

Channel Frequency Spread

38 MHz

Channel Spacing

Analogue : 25 kHz/20 kHz/12.5 kHz

Channel Spacing - Digital - Wide/Narrow

12.5 kHz/6.25 kHz

Antenna Impedance - 50 Ohm

Yes

Antenna Connector

BNC

Frequency Stability

± 1 ppm (-30 °C to + 60 °C)

Operating Temperature Range

-30 °C to + 60 °C

Operating Voltage

13.2 V DC (10.8 ~ 15.6 V DC)

Dimensions

160 x 43 x 136 mm
- Projections not included -

Weight (net)

1.2 kg

Adjacent Channel Selectivity (Analogue)

80 dB at 25 kHz
78 dB at 20 kHz
70 dB at 12.5 kHz

Audio Output

4 Watt with less than 3% distortion

Intermodulation

Analogue: 65 dB

Sensitivity

Digital @ 3% BER:
0.28 µV at 12.5 kHz
0.20 µV at 6.25 kHz
1% BER:
-2 dB µV at 12.5 kHz
-5 dB µV at 6.25 kHz

Sensitivity (Analogue) - EIA 12 dB SINAD

0.25 µV

Sensitivity (Analogue) - EN 20 dB SINAD

-3 dB µV

Spurious Reponse Rejection (Analogue)

80 dB

RF Power Output

5 W - 25 W

FM Noise (EIA)

Analogue:
50 dB at 25 kHz
50 dB at 20 kHz
45 dB at 12.5 kHz

Microphone Impedance

1800 Ohm

Modulation Distortion

Less than 3%

Modulation Limiting

Analogue:
± 5.0 kHz at 25 kHz
± 4.0 kHz at 20 kHz
± 2.5 kHz at 12.5 kHz

Spurious Emission (EN)

-36 dBm = 1 GHz
-30 dBm > 1 GHz

Spurious Response (EIA)

80 dB
