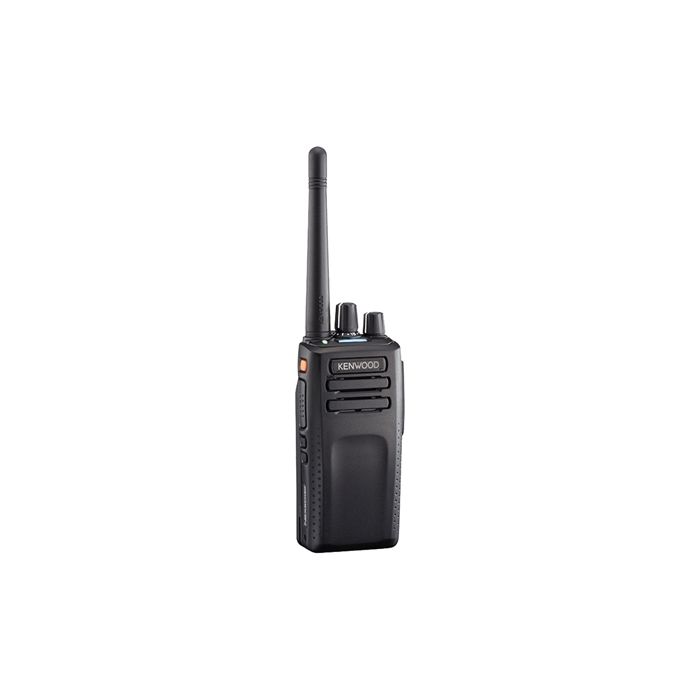

Kenwood NX-3220E3 VHF Nexedge DMR

• Multi-protocol digital radio - designed to operate under an NXDN or DMR digital, and FM analogue protocols
• NXDN Conventional and Type-C & Gen2 Trunking
• DMR Tier II, DMR Auto Slot Select & Site Roaming
• Mixed Digital & FM Analogue Operation allows gradual migration at your own pace
• 7-color Light Bar Indicator on the top panel
• Built-in GPS Receiver/Antenna for effective fleet management
• Built-in Bluetooth for hands-free communication - Applicable Bluetooth profiles: HSP (Headset Profile provided) and SPP (Serial Port Profile - available as an option)
• Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
• Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
• Built-in Motion Sensor (Man-down, Stationary and Motion Detection)
• IP54/55/67 and MIL-STD-810 C/D/E/F/G
• 4-Line Basic Frame (2Line Main/Sub-LCD, icon & key guide) / 14 Characters
• 5-Line Text Message Frame (3 Lines of Text, icon & key guide)
• 4-way Directional-pad (D-pad) for intuitive control and operation

Geleverd met

Riemclip Ja

Handleiding Ja

Schroevenset Ja

Eigenschappen

Meerkleurige LED Ja

2-Toon Ja

5-toon signalering Ja

Batterijspaarfunctie Ja

Ingebouwde Bluetooth module Ja

Kanaal-Bezet-Blokkering (BCL) Ja

Oproeptoon Ja

Compact design Ja

Data modus operatie Ja

Ingebouwde digitale ANI Ja

DTMF Ja

Gebruiksvriendelijk Ja

Ingesloten boodschap Ja

Noodoproepfunctie Ja

Noodtoets Ja

Bewegingsdetector Ja

Kenwood "K"larity Ja

Flash geheugen Ja

FleetSync Ja

Ingebouwde GPS Ja

GPS-compatibel Ja

Kenwood ESN (Electronic Serial Number) Ja

Toetssignaal aan/iut Ja

Toetsvergrendeling Ja

"Lone Worker"-functie Ja

Waarschuwing bij lage batterijspanning Ja

"LTR" Trunking Ja

MDC-1200 Ja

Minimaal volume Ja

Functie "Man-Down" Ja

Monitortoets Ja

Meervoudige scanning Ja

Selecteerbare toon Ja

PC-programmering en -afstelling Ja

Programmable Function Keys 3 programmeerbare functietoetsen

PTT ID Ja

QT (CTCSS) / DQT (digitaal) Ja

Real-time klok Ja

Instelbare microfoon-gevoeligheid Ja

"Talk Around" Ja

"Talk Back" scan-functie Ja

Time-out timer Ja

Ingebouwde scrambler Ja

Windows programmering & afstelling Ja

Eigenschappen NEXEDGE

Full details of all the NEXEDGE features available from your Kenwood dealer Ja

All Group Call Ja

AMBE+2 Vocoder Ja

Broadcast Call (Trunking Mode) Ja

Emergency Call Ja

Fail Soft Mode Ja

Group Call (Trunking Mode) Ja

Individual Private Call (Trunking Mode) Ja

Individual Call Ja

Message Trunked Mode Ja

NXDN Conventional Included Ja

NXDN Digital 12.5 / 6.25 kHz Channel Spacing Ja

NXDN Scrambler Included Ja

Over-the-air Alias Ja

Paging Call Ja

Priority Monitor IDs Ja

"Radio Access Numbers" (RAN) Ja

"Remote Group Add" (Trunking Mode) Ja

Remote Monitoring Ja

Remote Stun/Kill Ja

Status Messaging Ja

Transmission Trunked Mode Ja

Zones 4

Eigenschappen DMR

AMBE+2 Vocoder Ja

Direct Mode (P2P) Ja

DMR Tier II Ja

DMR Site Roaming Ja

DMR Auto Slot Select Ja

Individual Call with Acknowledgement Ja

Single-slot Data Timing Ja

TDMA 2-slot System Architecture Ja

Opties

Keuze tussen verschillende optionele batterijen Ja

Keuze tussen verschillende optionele microfoons Ja

Interne encryptiekaart Ja

Applicable Standards

For use in the EU Ja

IP54 Ja

IP55 Ja

IP67 Ja

MIL-STD 810 C/D/E/F/G Ja

Technische Specificaties

Frequency Range 136 - 174 MHz

Number of Channels 64

Number of Zones 4

Channel Spacing - Analogue - Wide/Mid/Narrow 25 kHz/20 kHz/12,5 kHz

Modulation Limiting - Analogue ± 5.0 kHz at 25 kHz

± 4.0 kHz at 20 kHz

± 2.5 kHz at 12.5 kHz

Channel Spacing - Digital - Wide/Narrow 12,5 kHz | 6,25 kHz

Battery Life With KNB-55L: ± 8h (FDMA) / ± 9.5 h (TDMA)

With KNB-56N: ± 8h (FDMA) / ± 9.0 h (TDMA)

With KNB-57L: ± 11h (FDMA) / ± 13.5 h (TDMA)

- 5-5-90 -

Frequency Stability ± 2 ppm (-30 °C to + 60 °C)

Operating Temperature Range -30 °C to + 60 °C

Operating Voltage 7.5 V DC ± 20%

Dimensions (WxHxD)

Weight (net)

Specificaties "Receiver"

Audio Output 3% Distortion: 500 mW / 8 Ohms

5% Distortion: 1000 mW / 8 Ohms

- Internal Speaker -

Intermodulation 65 dB

Selectivity (Analogue) 12.5 kHz: 68 dB

20 kHz: 74 dB

25 kHz: 76 dB

Sensitivity (Analogue) - EIA 12 dB SINAD 0.25 µV (12.5/20/25 kHz)

Sensitivity (Analogue) - EN 20 dB SINAD 12.5 kHz: -1 dB µV (0.45 µV)

20 kHz: -3 dB µV (0.35 µV)

25 kHz: -3 dB µV (0.35 µV)

Sensitivity (Digital) NXDN: 12.5 kHz = 0.25 µV at 3% BER

NXDN: 6.25 kHz = 0.20 µV at 3% BER

NXDN: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER

NXDN: 6.25 kHz = -4 dB µV (0.32 µV) at 1% BER

DMR: 12.5 kHz = -4.5 dB µV (0.30 µV) at 5% BER

DMR: 12.5 kHz = -1 dB µV (0.45 µV) at 1% BER

Spurious Response Rejection 65 dB

Specificaties "Transmitter"

RF Power Output 5 W / 4 W / 1 W

Audio Distortion 3 %

FM Hum & Noise Analog @ 25 kHz: 45 dB

Analog @ 20 kHz: 45 dB

Analog @ 12.5 kHz: 40 dB

Spurious Emission (EN) -36 dBm = 1 Ghz

-30 dBm > 1 Ghz
