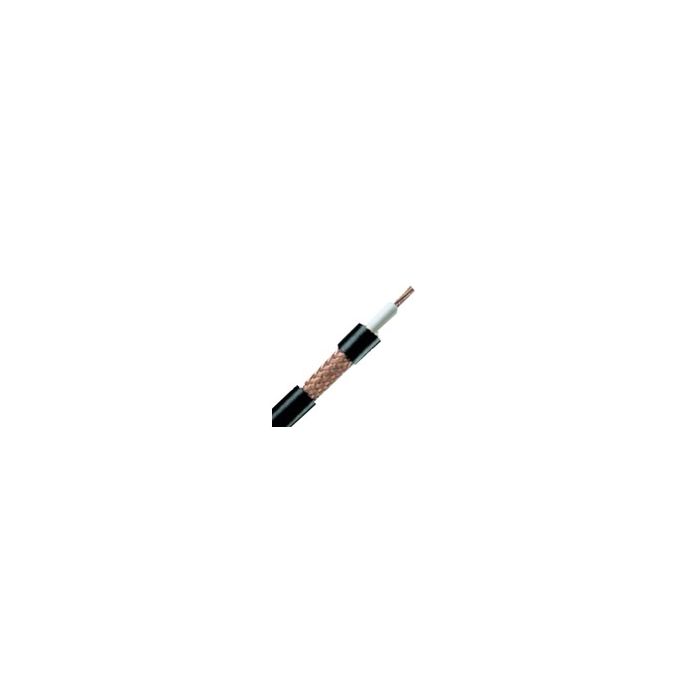

K-PO RG-213 TY U M17/74 / MIL-C-17 Coaxkabel p-100mtr

Art.nr. 8200
Op voorraad
Excl. BTW € 265,00 € 219,01
Coaxial Cable 50 Ohms according to MIL-C-17 (CPR /ECA Class ) per 100 mtr

Description


Our RG 213 cable is CPR (Construction Products Regulation) compliant and have the ECA classification. More information about CPR you can find here:
https://ec.europa.eu/growth/sectors/construction/product-regulation_en
Inner conductor: Plain copper 7 x 0.75 mm
Dielectric: Low density PE F7.25 ± 0.08 mm
Outer conductor (shield): Plain copper 240 x 0.13 mm
Shield coverage: 93%
Sheath PVC or LSZH: F10.3 ± 0.18 mm
Impedance: 50±3 Ohm
Nominal capacitance: 100 pF/m
Velocity of propagation: 66%
Insulation resistance: >2000 Mohm.Km
Inner conductor resistance: 6.0 Ohm/Km
Outer conductor resistance: 5.0 Ohm/Km
Operating temperature range: -30 °C - +70 °C
Copper weight: 59.9 Kg/Km
Cable weight (approx.): 149.7 Kg/Km
Screening effectiveness: >55 dB
Please check the data sheet at downloads for more information

Our RG 213 cable is CPR (Construction Products Regulation) compliant and have the ECA classification.

  • Inner conductor: Plain copper 7 x 0.75 mm
  • Dielectric: Low density PE F7.25 ± 0.08 mm
  • Outer conductor (shield): Plain copper 240 x 0.13 mm
  • Shield coverage: 93%
  • Sheath PVC or LSZH: F10.3 ± 0.18 mm
  • Impedance: 50±3 Ohm
  • Nominal capacitance: 100 pF/m
  • Velocity of propagation: 66%
  • Insulation resistance: >2000 Mohm.Km
  • Inner conductor resistance: 6.0 Ohm/Km
  • Outer conductor resistance: 5.0 Ohm/Km
  • Operating temperature range: -30 °C - +70 °C
  • Copper weight: 59.9 Kg/Km
  • Cable weight (approx.): 149.7 Kg/Km
  • Screening effectiveness: >55 dB


Please check the data sheet at downloads for more information
