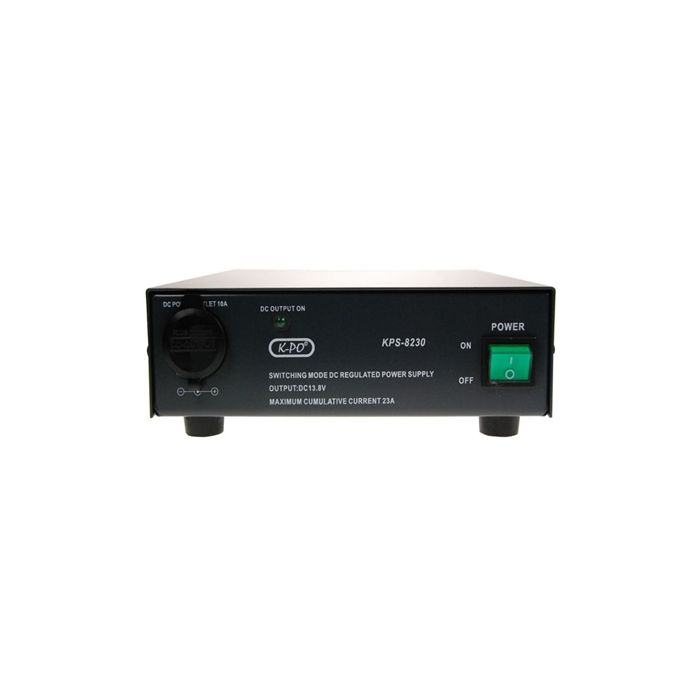

K-PO KPS-8230 Voeding

Art.nr. 9053
Op voorraad
Excl. BTW € 109,00 € 90,08
Schakelende voeding 13,8 V

Description

Specifications:
Input voltage: 230V/50Hz
Output voltage: Fixed 13.8VDC+-0.5V / 10-15V Adjustable
Output voltage regulation: Less than 2%
Protection: Overload, Over temperature, Short Circuit Protection by Constant Current Circuitry and Output Over Voltage Protection.
Output current: 23A (max), 23A (continuous)
Ripple & Noise: <100mVp-p
Fuse: 230:4A
Dimensions: 181x63x190mm
Weight: 1.6kg

Specifications:


  • Input voltage: 230V/50Hz
  • Output voltage: Fixed 13.8VDC+-0.5V / 10-15V Adjustable
  • Output voltage regulation: Less than 2%
  • Protection: Overload, Over temperature, Short Circuit Protection by Constant Current Circuitry and Output Over Voltage Protection.
  • Output current: 23A (max), 20A (continuous)
  • Ripple & Noise: <100mVp-p
  • Fuse: 230:4A
  • Dimensions: 181x63x190mm
  • Weight: 1.6kg
Meer Lezen
Meer informatie
Vrachttype N
Vergunning Nee
Merk K-PO
