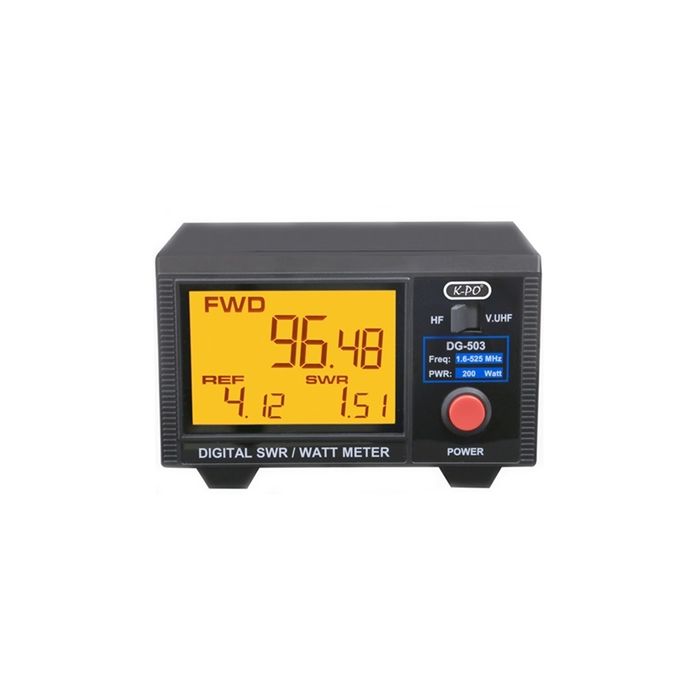

K-PO DG-503N Digitale SWR/Watt Meter

The K-PO DG-503 is a High Quality digital SWR & Watt meter for accurate measuring for Forward Power & Reflected Power & VSWR. The K-PO DG 503 has a frequency range from 1.6 to 60 MHz (VHF) and from 125 to 525 MHz (UHF) and a power range from 0 to 200 Watt. The K-PO DG-503 has 1 x UHF-female input connector and 1 x UHF-female connector for the VHF band (1.6 to 60 MHz) and 1 x N-female input connector and 1 x N-female connector for the UHF band (125 - 525 MHz). The K-PO DG-503 voltage is 12 Volt.

Features:

Large LCD (3.5") display for easy of reading.

Forward / Reflected power / VSWR ratio in one push button.

LCD backlight display.

Convenient control layout for easy operation

DC 12 Volt

Technical specifications:

Frequency Range: 1.6 - 60 MHz & 125 - 525 MHz

Caibration point: 14MHz - 50MHz - 145MHz - 435MHz

Impedance 50 Ohm

Power Range: 0 - 200W

Accuracy: (+/- 5%)

Minimum Power for SWR: 1W

Insertion Loss Less than 0.1 dB

Testing function: Fwd/Ref Power & VSWR ratio

Voltage: 12 Volt

Input Connector: 1 x N-female + 1 x UHF-female

Output Connector: 1 x N-female + 1 x UHF-female

Dimension (W/H/D) mm 140 x 84 x 122

Weight (Net): 750 Gram

Package:

1 x K-PO DG503 SWR/Watt meter

1 x 12 Volt DC

1 x User manual (English)
