Incotech ECH1040-K1 50001

Let op: de afbeelding van de aansluiting kan afwijken! Zie de PDF of u de juiste connector heeft geselecteerd.

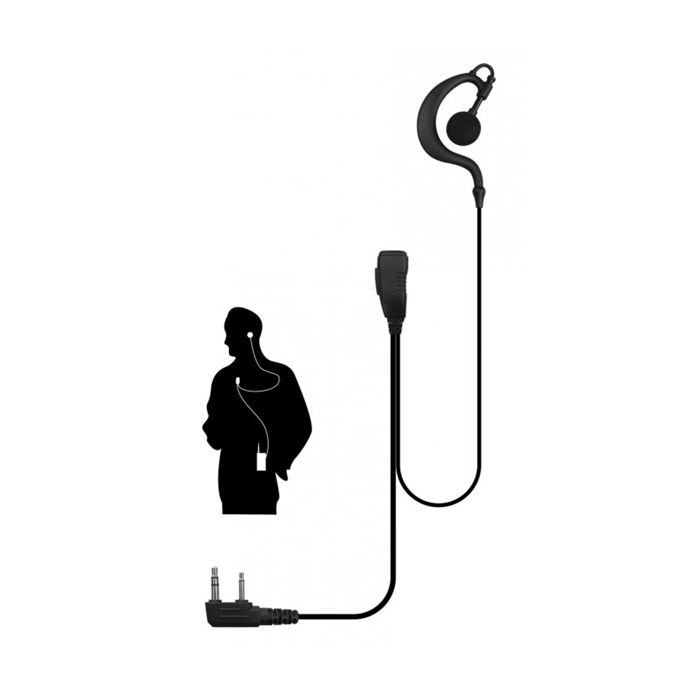

Incotech Earhook audio accessoire. Met PTT toets en Earhook oortje.

Connector K1: Kenwood Two-Pin Right Angle 3,5 mm Stereo & 2,5 mm Mono

Specificaties

- Soft and skin-friendly ear hook material.

- Environmental PU cable reinforced with Kevlar.

- Applicable to patrolling police officer and security personnel in hotel, conference hall, restaurant and casino, etc.

- Avalible for Motorola, EF Johnson, FRS, Kenwood, Icom, Yaesu-Vertex, Maxon, etc

Technische specificaties:

Speaker

Dimension: ?15mm*4.8mm

Impedance: 32Ohm±15% at 1000Hz

Rated input power: 100mW

Maximum power: 200mW

Sound Pressure Level: 118±3dB at 1000Hz

Microfoon

Type: Electret Condenser Microphone

Impedance: 2.2kOhm

Sensitivity: -40±2dB at 1000Hz(0dB=1 V-Pa)

Operating voltage: 1.1-10V

PTT

Dimension(mm): 34.9×14.2×11.8
