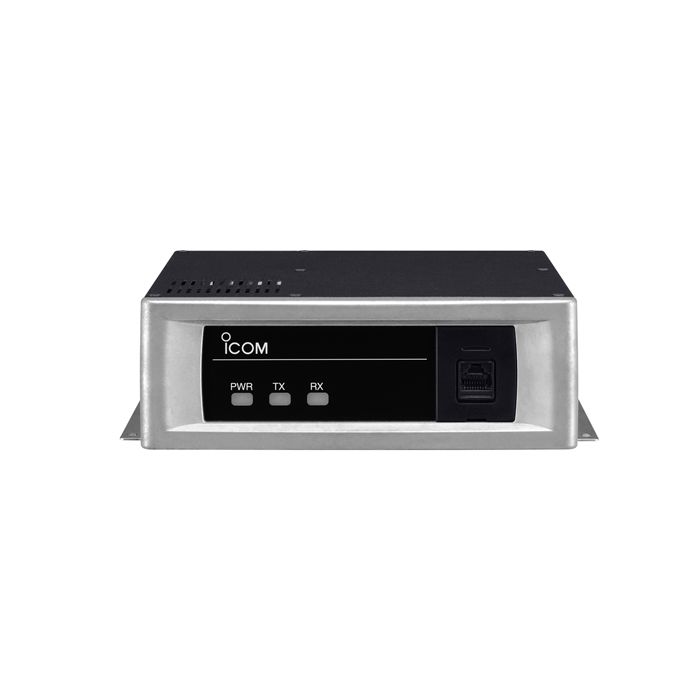

Icom UR-FR5300 Extra kanaal

Descriptions

·VHF 50 W* analog/digital repeater module

* 25 W output power depending on the channel module version.

·Install to IC-FR5300 for 2 channel repeater

·Works as an independent repeater

Specifications

• Frequency coverage
• (Varies according to version)       136-174 MHz (USA, EXP, EUR, CAN, AUS)
• Number of channels        32 channels / 1 zones
• RF output            50 W, 25 W, 5 W (USA, EXP, CAN, AUS Versions)
• 25 W, 10 W, 5.8 W (EUR, EXP Versions)
• Sensitivity           Digital (1% BER) –4.0 dBµV (0.32 µV) emf typ. (EN301 166)
• Analog (12 dB SINAD)     –119 dBm (0.25 µV) typ. (TIA-603)
• –6.0 dBµV emf typ. (EN300 086)
• Dimensions
• (projections not included; W×H×D)           176×60×194 mm, 6.9 × 2.4 × 7.6 in
• Weight (approx.)              2.2 kg, 4.9 lb
