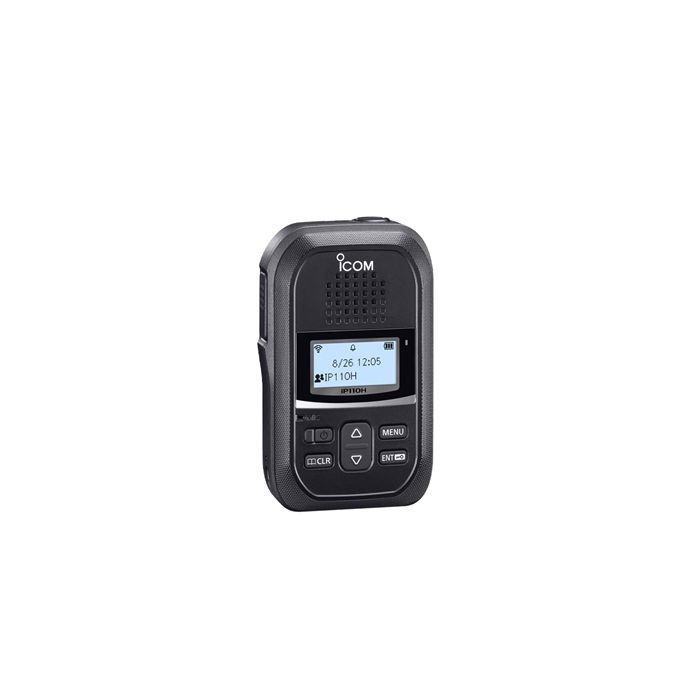

Icom IP-110H IP Terminal Radio

Real-time Voice Communication Tool that Instantly Connects You with Your Team

Scalable System Using Wireless LAN Network

Deploying wireless access points over an IP network, the WLAN radio system can expand the communication range.

License-Free Communication

The WLAN radio uses common wireless LAN network frequencies, which do not need communication fees for running the system.

Communication with Dispersed Sites

When connected over the Internet VPN, an WLAN radios can communicate between dispersed sites.

Simultaneous TalkListen Function

The WLAN radio provides full duplex communication like a telephone conversation and one-to-many communication.

TalkListen works with or without external headset.

IP110H Features

·All, Group, Talkgroup, Individual and Telephone Calls

·1000 mW loud audio from internal speaker

·Optional Bluetooth® headset, VS-3

·IP67 / IP54 waterproof and dust-tight

·Battery can be charged through the USB Type-C™ cable

·More than 20 hours of operating time (Tx 1: Rx 1: Stand-by 8 duty ratio)

·WPA2, WPA-Enterprise security

·Other features

Audio is recorded for instant review

Vibration alert function

Motion/Stationary detection, man down and lone worker functions

Over-the-Air programming

Compatible with the IP100H WLAN radio

IP110H

Specifications

IP110H

• Wireless Standards         IEEE802.11 a/b/g/n/ac
•
• Frequency Range *1        2.4–2.4835 GHz, 5.15–5.35, 5.47–5.85 GHz
• Security               WEP (64/128-bit), WPA2-Enterprise, WPA-Enterprise, WPA-PSK, WPA2-PSK
• AF Output Power             1000 mW typ. (Internal SP) / 300 mW typ. (External SP)
• Operating Temperature –10°C to +60°C, +14°F to +140°F

• Charging Temperature   0°C to + 60°C, + 32°F to + 140°F
• Dimensions         57 × 96.9 × 25.1 mm, 2.2 × 3.8 × 1.0 in (W × H × D; Projections are not included)
• Weight (approximate)    146 g, 5.2 oz
• Operating Time More than 20 hours (TX 1 : RX 1 : Stand-by 8 duty ratio)
• Charging Time   4 hours (With BC-257 and BC-228)
• Supplied Accessories       OPC-2480 USB charger cable, MBB-1 belt clip

*1 Authorized frequency range and channels may differ depending on the country.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard            MIL-810 G

Method Procedure

• Low Pressure    500.5 I, II
• High Temperature     501.5 I, II
• Low Temperature     502.5 I, II
• Temperature Shock      503.5 I-C
• Solar Radiation  505.5 I
• Rain Blowing/Drip  506.5 I, III
• Humidity      507.5 II
• Salt Fog        509.5
• Dust Blowing     510.5 I
• Immersion         512.5 I
• Vibration            514.6 I
• Shock   516.6 I, IV
•

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Ingress Protection Standard

Dust & Water

IP67 (Dust-tight and Immersion)

IP54 (Dust and Water resistant)

IP100FS

System requirements

• Operating System            Windows™ 11, Windows™ 10 (32-bit/64-bit),
• Windows™ 8.1 (32-bit/64-bit) (Except for Windows™ RT)
• CPU       Intel® Core™ 2 Duo Processor E6600/ 2.4 GHz or faster
• System Memory               2 GB or more
• Hard Disk Space 1 GB of disk space (for saving log files)
• Display Resolution           Full HD (1920×1080 pixel) recommended / XGA (1024×768 pixel) at least
• LAN       100BASE-TX or faster Ethernet interface
• USB       USB1.1 / 2.0
• Other    Speaker, microphone or headset

All stated specifications are subject to change without notice or obligation.
