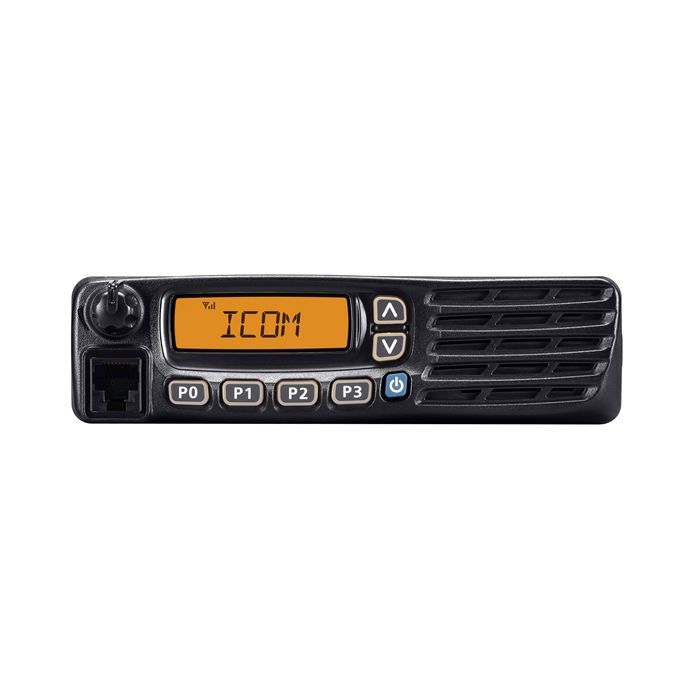

Icom IC-F6122D UHF IDAS Mobilofoon
Art.nr. 8569
Op voorraad
Excl. BTW
€ 549,00
€ 453,72
PMR IDAS Mobile 400-470 MHz, CH.SP. 8,33-12,5-20-25 Khz, 25W, 128ch
Description
- IDAS conventional and IDAS single-site trunking compatible
- Digital functionality built-in...no digital option board required
- Max. 128 channel memory channels with 8 zones
- 8 character alphanumeric display
- Multiple analogue signalling modes built-in 5-Tone, CTCSS, DTCS, MDC 1200* and BIIS 1200* (* Limited functions only)
- 4W (typ.) front mounted speaker and independent volume knob
- Talk back function and call mode selection
- Optional OPC-2078 D-SUB 25-pin ACC cable for GPS receiver connection
- MIL-STD-810-F rugged body
General
|
|
IC-F5122D |
IC-F6122D |
||
|
Frequency coverage |
136-174MHz |
400-470MHz |
||
|
Number of channels |
128 channels (8 zones) |
|||
|
Channel spacing |
6.25/12.5/20kHz, 6.25/12.5/25kHz |
|||
|
Type of emission |
16K0F3E, 14K0F3E, 8K50F3E, 4K00F1E/F1D |
|||
|
Current drain |
Tx |
25W |
5A |
|
|
Rx |
Stand-by |
300mA |
||
|
Max. audio |
1.2A |
|||
|
Dimensions |
150×40×117.5 mm |
|||
|
Weight |
0.8kg |
|||
Transmitter
|
|
IC-F5122D |
IC-F6122D |
|
RF output power (at 13.2V DC) |
25W, 10W, 2.5W (Hi, L2, L1) |
|
|
Spurious emissions |
0.25µV (=1GHz) |
|
|
Frequency stability |
±1.0ppm |
|
|
Audio harmonic distortion |
3% typ. |
|
|
Digital FSK error |
5% max. |
|
Receiver
|
|
IC-F5122D |
IC-F6122D |
|
|
Sensitivity |
(at 20dB SINAD) |
–4dBµV typ. (emf) |
|
|
(at 5% BER) |
–8dBµV typ. (emf) |
||
|
Adjacent channel selectivity |
80/80/70dB typ. (W/M/N), |
75/75/70dB typ. (W/M/N), |
|
|
Spurious response rejection |
70dB min. |
||
|
Intermodulation rejection |
67dB typ. (W/M/N), |
||
|
AF output power |
4W (typ.) |
||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|
Standard |
MIL-810 F |
|
Low Pressure Storage |
500.4 I |
|
Low Pressure Operation |
500.4 II |
|
High Temperature Storage |
501.4 I |
|
High Temperature Operation |
501.4 II |
|
Low Temperature Storage |
502.4 I |
|
Low Temperature Operation |
502.4 II |
|
Temperature Shock |
503.4 I |
|
Solar Radiation |
505.4 I |
|
Humidity Induced |
507.4 |
|
Settling Dust |
510.4 III |
|
Vibration |
514.5 I |
|
Shock Functional |
516.5 I |
|
Shock Transit Drop |
516.5 IV |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
| Vrachttype | N |
|---|---|
| Vergunning | LET OP voor sommige apparatuur is een vergunning nodig. Controleer de locale wet en regelgeving. |
| Merk | Icom |
