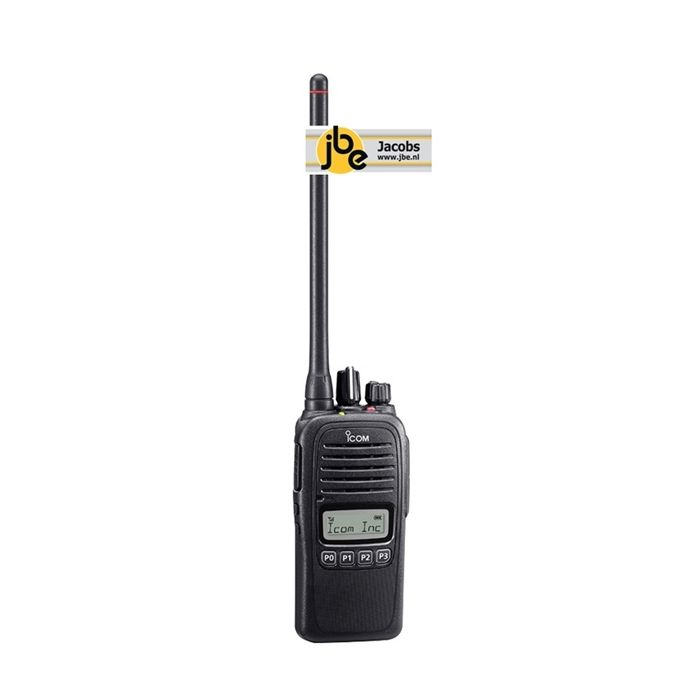

Icom IC-F1000S VHF Portofoon

IC-F1000/S/T

IC-F2000/S/T

Frequency coverage
(Varies according to version)

USA

136–174MHz

400–470MHz
450–512MHz

EXP

335–400MHz
400–470MHz
450–520MHz

Number of channels

IC-F1000
IC-F2000

16 channels

IC-F1000T/S
IC-F2000T/S

128 channels

Type of emission

16K0F3E*/11K0F3E

Channel spacing

12.5/25kHz

Power supply requirement

7.5V DC nominal

Current drain

Tx High

1.3A

Rx

Stand-by

77mA

80mA

Max. audio
(Internal SP)

330mA

300mA

Antenna impedance

50O

Operating temperature range
(Radio specification)

–30°C to +60°C; –22°F to +140°F

Dimensions
(projections not included; W×H×D)

52.2×111.8×24.5mm
2.06×4.4×0.96 in
(With BP-279)

Weight (approx.)

240g
8.47oz
(With BP-279)

IC-F1000/S/T

IC-F2000/S/T

RF output power

5W, 2W, 1W
(Hi, L2, L1)

4W, 2W, 1W
(Hi, L2, L1)

Max. frequency deviation (W/N)

± 5.0kHz/±2.5kHz

Spurious emissions

70dB min.

Frequency stability

±2.5ppm

Audio harmonic distortion (W/N)

.0%/1.5% typ.
(AF 1kHz 40% deviation)

FM Hum and Noise (W/N)

46/40dB typ.

Ext. microphone connector

3-conductor 2.5 (d) mm (1/10")/2.2kO

IC-F1000/S/T

IC-F2000/S/T

Sensitivity (at 12dB SINAD)

0.25µV typ.

Adjacent channel selectivity (W/N)

76/53dB typ.

73/56dB typ.

Spurious response rejection

70dB min.

Intermodulation rejection

74dB typ.

73dB typ.

Hum and noise (W/N)

51/45dB typ.

49/43dB typ.

AF output power
(at 5% distortion)

Internal SP

800mW typ.(With 12O load)

External SP

400mW typ.(With 8O load)

Ext. speaker connector

2-conductor 3.5 (d) mm (1/8")/8O

IC-F1000/S/T IC-F2000/S/T

Number of option slots

-

CTCSS/ DTCS

encoder

Available

decoder

Available

2-Tone

encoder

Available

decoder

Available

5-Tone

encoder

Available

decoder

Available

DTMF autodial

Available

DTMF decoder

-

Voice Scrambler

Inversion

Available

Non-rolling

-

Rolling

-

APCO P25 digital

-

6.25kHz digital

-

MDC 1200

Available (Limited functions)

Motion function

Available

Lone worker function

Available

Man down function

Available

Intrinsically safe

-

Voice announcement

Available

Audio compander

Available

GPS receiver

-

Standard

MIL-810 G
Method, Proc.

Low Pressure Storage

500.5 I

Low Pressure Operation

500.5 II

High Temperature Storage

501.5 I

High Temperature Operation

501.5 II

Low Temperature Storage

502.5 I

Low Temperature Operation

502.5 II

Temperature Shock

503.5 I-C

Solar Radiation

505.5 I

Rain Blowing

506.5 I

Rain Drip

506.5 III

Humidity Induced

507.5 II

Salt Fog

509.5

Dust Blowing

510.5 I

Immersion

512.5 I

Vibration

514.6 I

Shock Functional

516.6 I

Shock Transit Drop

516.6 IV

Ingress Protection Standard (IC-F1000/T/S, IC-F2000/T/S & HM-168LWP)

Dust & Water

IP67 (Dust-tight and waterproof protection)
