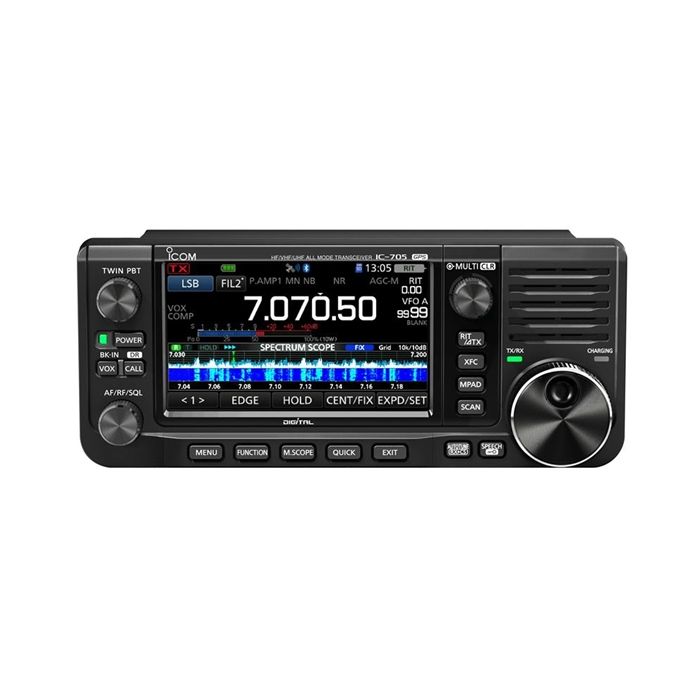

Icom IC-705 Incl. BP-307 Accu

QRP radio HF/50/144/430 MHz all mode (Geleverd inclusief de BP-307 accu met grotere capaciteit)

De Icom IC-705 is een draagbare compacte zendontvanger voor gebruik op de HF/50/144/430 MHz banden.

• Wordt geleverd met HM-243 Microfoon

Zendvermogen

• 5 Watt met BP-307 Li-ion batterij
• 10 Watt met 13,8 V DC voeding

Multimode

•  Ervaar een breed gebruik van verschillende frequenties in de D-STAR, SSB, CW, AM of FM mode.
• HF direct sampling

·        Door de HF direct sampling architectuur is er de mogelijkheid om de signalen die u ontvangt te optimaliseren met gebruik van uitgebreide filter instellingen.

Aanraakscherm

·        Het 4,3-inch aanraakscherm brengt naast een intuïtieve bediening ook een duidelijk beeld van van alle instellingen en een real-time spectrumscope met waterval.

Extra functies

•        Bluetooth® en WLAN zijn ingebouwd
•         Ondersteunt QRP / QRPp-bediening
•         GPS positionering en loggerfunctie
•         MicroSD-kaartsleuf
•         D-STAR terminal en access point, foto deel functie

·        Functies en prestaties van een basisstation in een compacte en draagbare behuizing!

uitgebreide omschrijving Engels:

The new portable HF/VHF/UHF IC-705 has many great features such as SDR platform, internal battery, GPS, Bluetooth and D-STAR, all in a compact and lightweight body. The Icom IC-705 uses the same 4.3 inch colour touch screen display as the best selling IC-7300 and IC-9700 featuring real-time spectrum scope and waterfall display.

HF/50/144/430 MHz Multimode Operation

From HF to 50/144/430 MHz, you can enjoy a variety of bands in D-STAR DV, SSB, CW, AM and FM modes. The IC-705 receives continuously from 30 kHz through the 144 MHz band. You can also enjoy FM broadcast and Airband reception.

RF Direct Sampling System

The IC-705 uses the RF direct sampling method* matured in the IC-7300, IC-7610, and IC-9700. This method greatly reduces distortion. The high speed /high resolution real-time spectrum scope and waterfall display are incorporated in a compact design for the first time in this class.

* Down-conversion IF sampling method for 25 MHz and above

Real-Time Spectrum Scope and Waterfall Display

The IC-705 inherits the performance and functions of the highly-acclaimed IC-7300 and IC-9700 scopes. You can visually figure out the band condition and check clear frequencies. It takes you to the next level beyond traditional field operation.

Large Touch Screen Colour Display

The large 4.3 inch colour TFT touch LCD is the same size as the IC-7300 and IC-9700. It offers intuitive operation of the IC-705’s functions, settings, and various operational visual aids, such as the band scope, waterfall, and audio scope functions.

Compact and Lightweight Design

“Base station radio” performance and functions are packaged in a compact size of approximately 20 cm, 7.9 in (W) × 8.35 cm, 3.3 in (H) × 8.2 cm, 3.2 in (D). The weight is approximately 1.1 kg (including BP-307). Its compact and lightweight design enables you to hold it with one hand.

BP-272 Li-ion Battery Pack or 13.8 V DC External Power Supply

The IC-705 utilises the high capacity Li-Ion battery from the ID-51A and ID-31A handheld radios. A 13.8 V DC external power supply can be used for operation and charging of the BP-307.

Maximum Output Power 5 W (BP-272), 10 W (13.8 V DC)

In portable mode, the IC-705 has a maximum output power of 5 W from the BP-307 which can last approx. 3 hours*. This is perfect for true 5 W QRP as well as the 0.5 W QRPp operations. Once you setup with a 13.8 V DC power source, you have up to 10 W.

* TX : RX : standby = 1 : 1 : 8 (The Power Save function ON, in the FM mode)

Supports Connections Using WLAN/Bluetooth® Technologies

Utilises WLAN/Bluetooth® technologies for linking and remote control*. The VS-3 headset (optional) enables more comfortable operation via Bluetooth®

* Those features will be available with future firmware upgrades.

GPS Functions

An internal GPS receiver and antenna enhance your operations by providing location logging*, RX/TX locations via D-PRS®, “Near Me” repeater search/scan, QSO recording with metadata*, and internal clock synchronization.

* Micro SD required

microSD Card Slot

The microSD card slot enables the storage of user-profiles, QSO recording, TX voice memory keyer, RTTY logging, GPS data, screen capture, firmware upgrades, and programming.

* microSD card is not supplied.

Micro USB Connector

In addition to audio and rig control, the micro USB port allows charging capability, making digital modes easy with minimal cables.

D-STAR Functions

Enjoy the latest G3 Gateway and DV mode features with the IC-705. Have direct access to the D-STAR network with Terminal/Access point modes. Additionally, the IC-705 has the Photo Share feature introduced with the IC-9700. Share photos, without the need of a computer with other users with an IC-705 and IC-9700.

Programmable Speaker/Microphone

Enjoy portable operations with the supplied HM-243, programmable speaker/microphone. Perfect for operation with the IC-705 safely secured in the optional LC-192 backpack. User assignable buttons put functions like frequency and volume adjustments at the tip of your fingers, without removing your backpack.

Optional LC-192 Backpack, Ideal for Field Operations

Designed to be the "Ultimate", must have accessory for the IC-705, the LC-192 is the perfect utility backpack. Features like a safety strap, with a 1/4”-20 mounting lug to keep the IC-705 from accidentally falling out of the custom radio compartment to the user-adjustable internal panels for custom compartments for antennas, battery packs, or other items necessary for an afternoon SOTA activation.
