Hamking X-50N Vertical antenna
Art.nr. 4342
Op voorraad
Excl. BTW
€ 59,50
€ 49,17
vertical antenna for 144 MHz (4.5 dBi gain) and 430 MHz (7.2 dBi gain)
Description

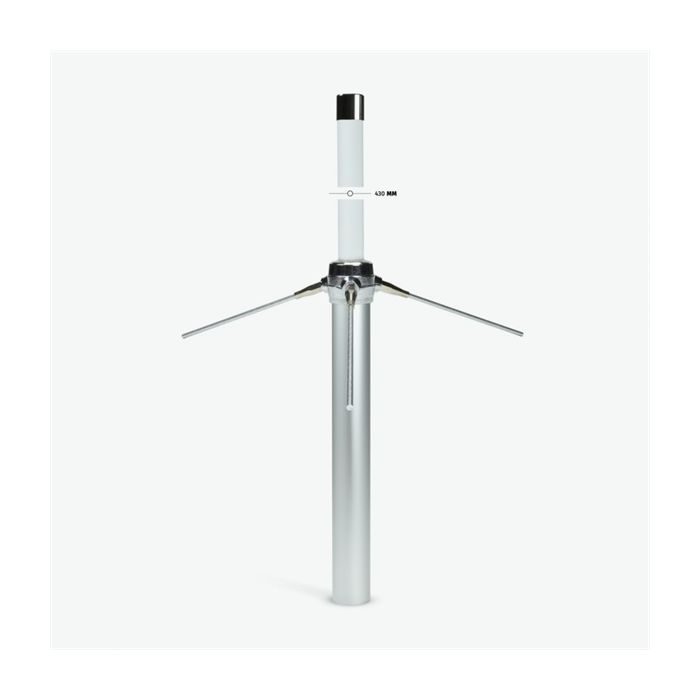

The HamKing X-50N vertical antenna for 144 MHz (4.5 dBi gain) and 430 MHz (7.2 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.
The HamKing X-50N vertical antenna for 144 MHz (4.5 dBi gain) and 430 MHz (7.2 dBi gain) consists of a fibre glass rod construction, which will be delivered pre-tuned and fully weatherproofed. Mast mounting brackets are included. Fitted with a low loss ‘N’-connector for best performance. Maximum power: 200 watts.
Electrical Data:
Frequency band:VHF/UHF/
Frequency:144/430 Mhz
Gain:4.5 dBi (144 MHz) / 7.2dBi (430 MHz)
VSWR:<1.5
Power:200 watts
Impedance:50?
Type:6/8 wave C-Load (144 MHz), 3x5/8 wave C-Load (430 MHz)
Radiation:Omnidirectional
Mechanical Data:
Weight:900 gram
Lenght:170 cm
Connector:N male
Mast Ø:30 - 48 mm
Max wind resistance:60 m/sec (216 km/h)
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Hamking |
