Glomex V9125 - 12 Talitha

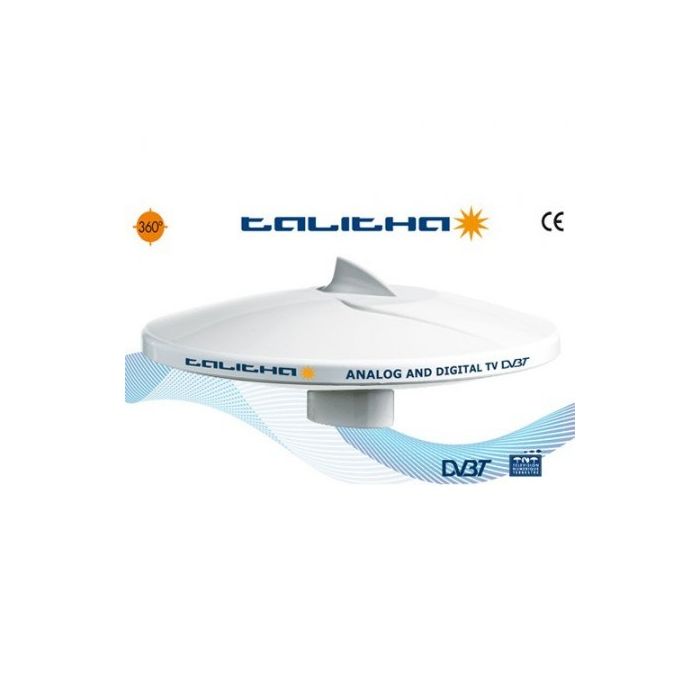

The V9125-00 is a compact omni-directional TV antenna and at just 250 mm in diameter it is light and offers very good performance. Made of ASA and free from active components inside, ensures total protection against the degrading agents typical of the marine environment. The amplifier (50023-98EC) installed on this antenna allows the adjustment of gain intensity of the received signal. The V9125 receives both analog and digital terrestrial TV signal, and if matched with a splitter V9147 (2-way, optional,) installed between the antenna and the amplifier, it can also receive AM-FM-radio frequencies. TECHNICAL SPECIFICATIONS ANTENNA DIAMETER 250 mm (10'') ANTENNA HEIGHT 120 mm (5'') BASE DIAMETER 25 mm (16'') ANTENNA WEIGHT 350 g (12,34 oz) RADOME MATERIAL U.V. resistant ASA ANGLE OF RECEPTION 360° POLARIZATION Horizontal IMPEDANCE 75 ohms FREQUENCY RANGE 40-890 MHz GAIN AVERAGE 26 dB NOISE FACTOR 2,2 dB POWER CONSUPTION 20 mA POWER SUPPLY 12-24 Vdc ANTENNA AMPL-BY PASS No ADJUSTABLE GAIN Yes TV SET MAX 2 TERMINATION F female CONNECTOR SUPPLIED F male gold plated connector (V9144) A-B SWITCH No SUPPLIED ACCESSORIES: 50023-98EC LINE AMPLIFIER COAXIAL CABLE 75 OHM 20 M (66') CABLE TV 1,50 M V9144 CONNECTOR WALL PLASTIC MOUNT
