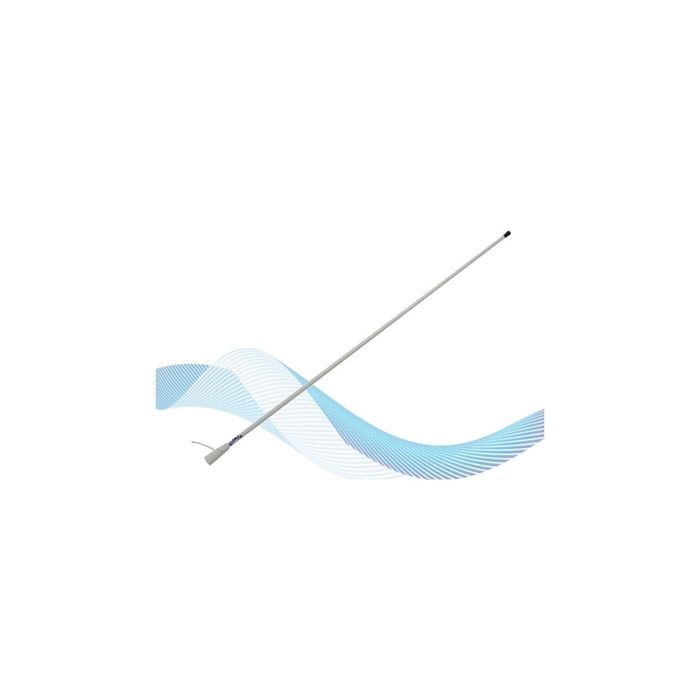

Glomex RA127 CB Antenne
Art.nr. 9519
Op voorraad
Excl. BTW
€ 109,00
€ 90,08
27 MHZ - 1,5M - FIBREGLASS - NYLON BUSHING - 4,5M COAXIAL CABLE
Description
The Citizens' Band, or CB, is a radio frequency band aimed for private communications.
RA127 is a CB antenna which assures a reliable and qualified communication system. Its shape is identical to that of the RA112 (VHF) and RA128 (AM/FM) antennas for a balanced look of your boat.
SUPPLIED ACCESSORIES:
COAXIAL CABLE - 4,5m/15' RG58ALL
PL259 male nichel-plated CONNECTOR (code RA132)
TECHNICAL SPECIFICATIONS
FREQUENCY RANGE
27 MHz
POLARIZATION Vertical
IMPEDANCE 50 ohms on channel 20
SWR
= 1,2
MAX INPUT POWER
50 W
GAIN AVERAGE
Unity
DC GROUND
Yes
ANTENNA LENGHT 1,5m/5'
ANTENNA WEIGHT 450g/15,90oz
TERMINATION Cable
The Citizens' Band, or CB, is a radio frequency band aimed for private communications.
RA127 is a CB antenna which assures a reliable and qualified communication system. Its shape is identical to that of the RA112 (VHF) and RA128 (AM/FM) antennas for a balanced look of your boat.
SUPPLIED ACCESSORIES:
- COAXIAL CABLE - 4,5m/15' RG58ALL
- PL259 male nichel-plated CONNECTOR (code RA132)
TECHNICAL SPECIFICATIONS
- FREQUENCY RANGE 27 MHz
- POLARIZATION Vertical
- IMPEDANCE 50 ohms on channel 20
- SWR = 1,2
- MAX INPUT POWER 50 W
- GAIN AVERAGE Unity
- DC GROUND Yes
- ANTENNA LENGHT 1,5m/5'
- ANTENNA WEIGHT 450g/15,90oz
- TERMINATION Cable
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Glomex |
