Glomex RA111AIS Marine antenne
Art.nr. 4424
Op voorraad
Excl. BTW
€ 129,49
€ 107,02
AIS Tx + Rx - 1db - 140 mm (5'') - Rubber - 9 m (30') coaxial cable
Description
The Automatic Identification System (AIS) is a monitoring system of naval traffic, useful for navigation safety with difficult meteorological conditions (fog or nocturnal navigation.) The AIS system operates on 2 expressly dedicated VHF channels (161.975 and 162.025 MHz) and allows the user to receive real time information about the traffic in the surrounding area. Glomex has planned and produced a range of calibrated antennas exactly for the specific VHF frequencies and for the AIS standards.

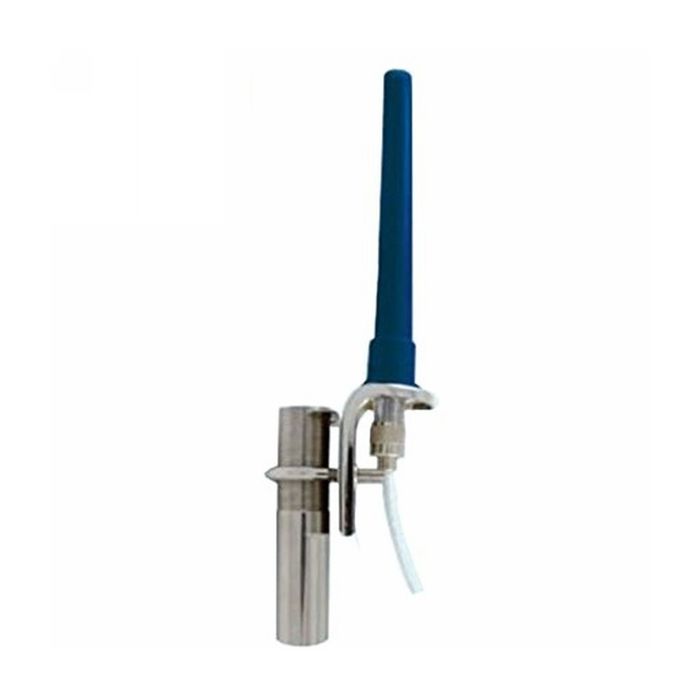

The RA111AIS antenna is protected by a tapered synthetic rubber tube and can be installed, on either sailboats or motorboats. Thanks to the V9181 support supplied, the RA111AIS can be installed in a vertical or horizontal position, on the mast or on the pulpit.
INSTALLATION:
Inflatable R.I.B.
Sail Boat
Power Boat
Big Yacht
Commercial Ship
TECHNICAL SPECIFICATIONS
FREQUENCY RANGE
161,975 - 162,025 MHz
GAIN AVERAGE 1 dB
IMPEDANCE 50 ohms
POLARIZATION Vertical
SWR = 1,2 at 162 MHz
MAX INPUT POWER
50 W
DC GROUND No
ANTENNA LENGHT 140mm/5''
ANTENNA WEIGHT 220g/7,76oz
TERMINATION SO239 for PL259 male connector
The Automatic Identification System (AIS) is a monitoring system of naval traffic, useful for navigation safety with difficult meteorological conditions (fog or nocturnal navigation.) The AIS system operates on 2 expressly dedicated VHF channels (161.975 and 162.025 MHz) and allows the user to receive real time information about the traffic in the surrounding area. Glomex has planned and produced a range of calibrated antennas exactly for the specific VHF frequencies and for the AIS standards.
The RA111AIS antenna is protected by a tapered synthetic rubber tube and can be installed, on either sailboats or motorboats. Thanks to the V9181 support supplied, the RA111AIS can be installed in a vertical or horizontal position, on the mast or on the pulpit.
INSTALLATION:
- Inflatable R.I.B.
- Sail Boat
- Power Boat
- Big Yacht
- Commercial Ship
TECHNICAL SPECIFICATIONS
- FREQUENCY RANGE 161,975 - 162,025 MHz
- GAIN AVERAGE 1 dB
- IMPEDANCE 50 ohms
- POLARIZATION Vertical
- SWR = 1,2 at 162 MHz
- MAX INPUT POWER 50 W
- DC GROUND No
- ANTENNA LENGHT 140mm/5''
- ANTENNA WEIGHT 220g/7,76oz
- TERMINATION SO239 for PL259 male connector
SUPPLIED ACCESSORIES
- COAXIAL CABLE 9 MT
- RA138 THREADED PROTECTION
- BCN F TO TNC M ADAPTOR
- V9181 STAINLESS STEEL BRACKET
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Glomex |
