Glomex RA111 Marine antenne
Art.nr. 4423
Op voorraad
Excl. BTW
€ 99,00
€ 81,82
VHF - 1db - 140 mm (5'') - Rubber - 18 m (59') coaxial cable
Description
The REGATTA & EMERGENCY series antennas are characterized by compactness and functionality.

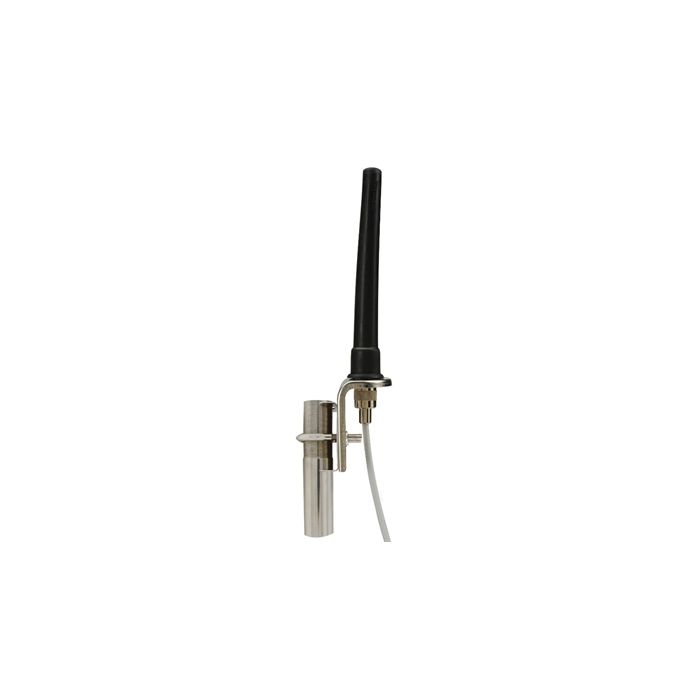

RA111 is a small VHF antenna (140mm/5'',) protected by a tapered synthetic rubber tube that can be installed, on the sailboats or motorboats. It is equipped with 18m (59') of coaxial cable and with a PL259 male connector.
INSTALLATION:
Inflatable R.I.B.
Sail Boat
Power Boat
TECHNICAL SPECIFICATIONS
FREQUENCY RANGE
156/162 MHz
GAIN AVERAGE 1dB
IMPEDANCE 50 ohms
POLARIZATION Vertical
SWR = 1,3 at 156,8 MHz
MAX INPUT POWER
50 W
DC GROUND No
ANTENNA LENGHT 140mm/5''
ANTENNA WEIGHT 220g/7,76oz
TERMINATION SO239 for PL259 male connector
The REGATTA & EMERGENCY series antennas are characterized by compactness and functionality.
RA111 is a small VHF antenna (140mm/5'',) protected by a tapered synthetic rubber tube that can be installed, on the sailboats or motorboats. It is equipped with 18m (59') of coaxial cable and with a PL259 male connector.
INSTALLATION:
- Inflatable R.I.B.
- Sail Boat
- Power Boat
TECHNICAL SPECIFICATIONS
- FREQUENCY RANGE 156/162 MHz
- GAIN AVERAGE 1dB
- IMPEDANCE 50 ohms
- POLARIZATION Vertical
- SWR = 1,3 at 156,8 MHz
- MAX INPUT POWER 50 W
- DC GROUND No
- ANTENNA LENGHT 140mm/5''
- ANTENNA WEIGHT 220g/7,76oz
- TERMINATION SO239 for PL259 male connector
SUPPLIED ACCESSORIES
- COAXIAL CABLE 18 MT
- CONNECTOR PL259 MALE
