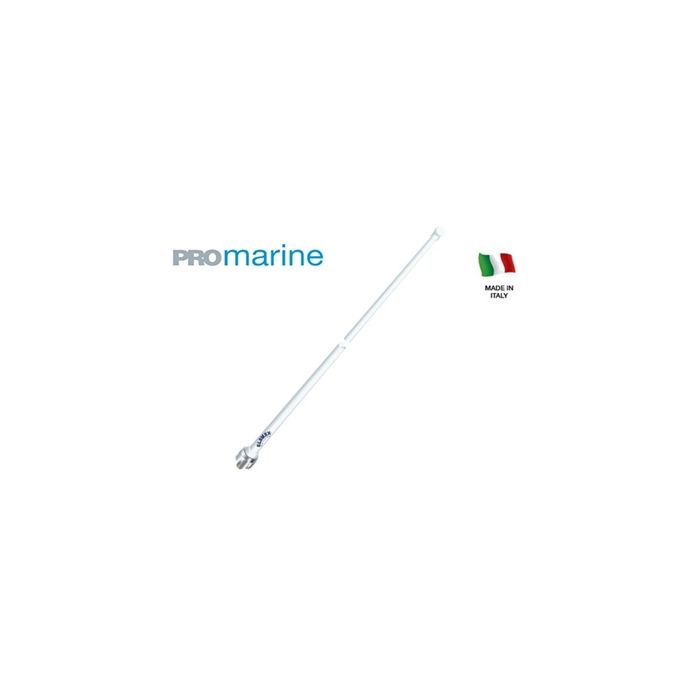

Glomex PRA444 Marine antenne

KEY POINTS:

• 3.1 dBi gain antenna.
• Vertically polarized, vibration proof, lightweight, corrosion resistant antenna.
• Middle-wave internal elements protected by high quality and rugged fibreglass tube.
• Developed with appropriate materials for withstanding harsh marine environmental conditions.
• Integrated 1” BSP stainless steel adaptor for an easy mounting.
• Each antenna metal element is DC-grounded for reducing the noise caused by static charges and atmospheric discharge.
• Wide irradiation lobe on the horizontal plan.
• SO239 termination.

FREQUENCY RANGE 156 162 MHz

GAIN 3.1dBi

NOMINAL IMPEDANCE 50 nbsp;ohms

POLARIZATION Vertical

VSWR = 1,3 at 156,8 MHz

POWER RATING 100 nbsp;W

DC GROUND Yes

TERMINATION SO239 for PL259 male connector

LENGHT 1m 3'

WEIGHT 150g 18,90oz

INSTALLATION 1"BSPx11tpi

TEMPERATURE RANGE -40 +60 °C

WIND RATING 60 m s

COLOUR white

MATERIAL Fibreglass nbsp; nbsp;
