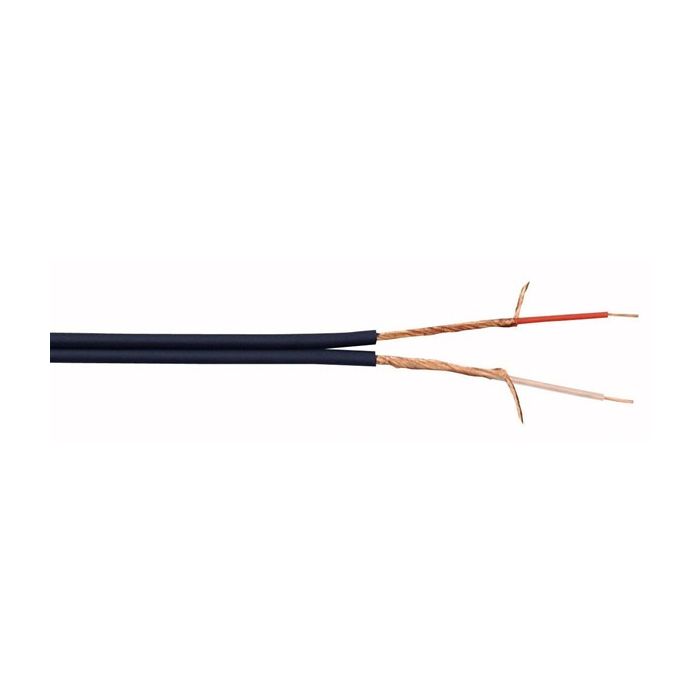

DMT AV-36 D9401 p-mtr

Audio/Video Cable A-symmetric 75 Ohm per meter

Specifications

Conductor drains Ø mm: OFC 20 x 0,12
Conductor insulation: PE red + transparent
Conductor insulation Ø mm: 1,3
1st shield: OFC twisted 32 x 0,12
2nd shield: -
Outer isolation: PVC dark blue
Outer isolation Ø mm: 2 x 3

Conductor resistance: 80 Ohm/km
Shield resistance: 50 Ohm/km
Capacity Inner cond Shield
/Inner cond: 160 pF/m
Working temperature min./max.: -20~60 °C
Working Voltage overflash: 30V
Nom Impedance: 35 Ohm

Attenuation:
10 MHz: 0,02480 /90 MHz: 0,28000 /100 MHz: 0,28530 /220 MHz: 0,55350
/470 MHz: 1,33130 /770 MHz: 2,21180 /1000 MHz: 3,0271
