Diamond X-7000 (N) Basisantenne

Art.nr. 1639
Op voorraad
Excl. BTW € 215,00 € 177,69
2-70-23 Ant.8.3-11.7-13.7dB L=5 Mtr , N connector (KAN NIET WORDEN VERZONDEN, ALLEEN OPGEHAALD)

Description

X7000: 144-430-1200MHz(2m-70cm-23cm) Wit.

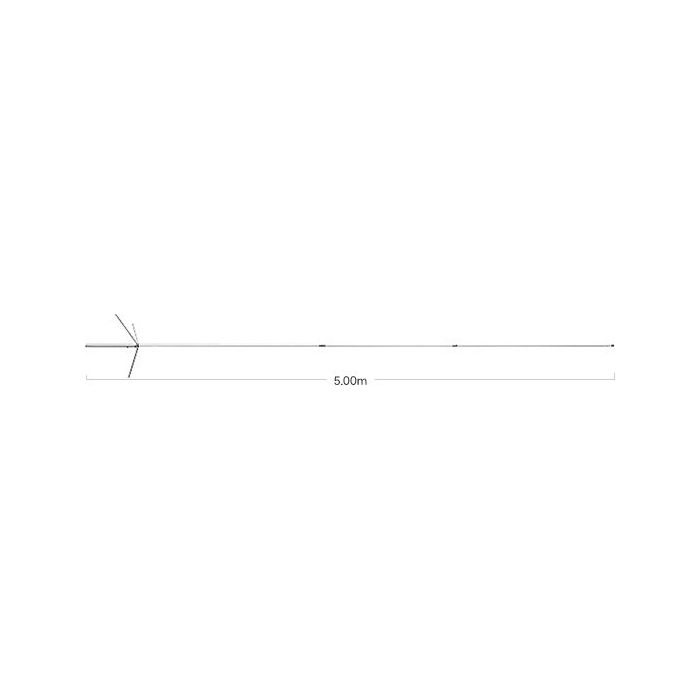

  • Length:5.0m
  • Radial length:approx.52cm
  • Weight:2.2kg
  • Gain:8.3dB(144MHz),11.7dB(430MHz),13.7dB(1200MHz)
  • Max.power rating:100W FM(144-430MHz),60W FM(1200MHz),Total 100W FM
  • Impedance:50ohms
  • VSWR:Less than 1.5:1
  • Rated wind velocity:40m-sec.
  • Mast diameter accepted:30mm to 62mm
  • Connector:N-J
  • Type:3x5-8wave C-Load(144MHz),8x5-8wave C-Load(430MHz),14x5-8wave C-Load(1200MHz),FRP outershell
Meer Lezen
Meer informatie
Vrachttype L
Vergunning Nee
Merk Diamond
