Diamond X-6000 (N) Basisantenne

Art.nr. 1638
Op voorraad
Excl. BTW € 179,00 € 147,93

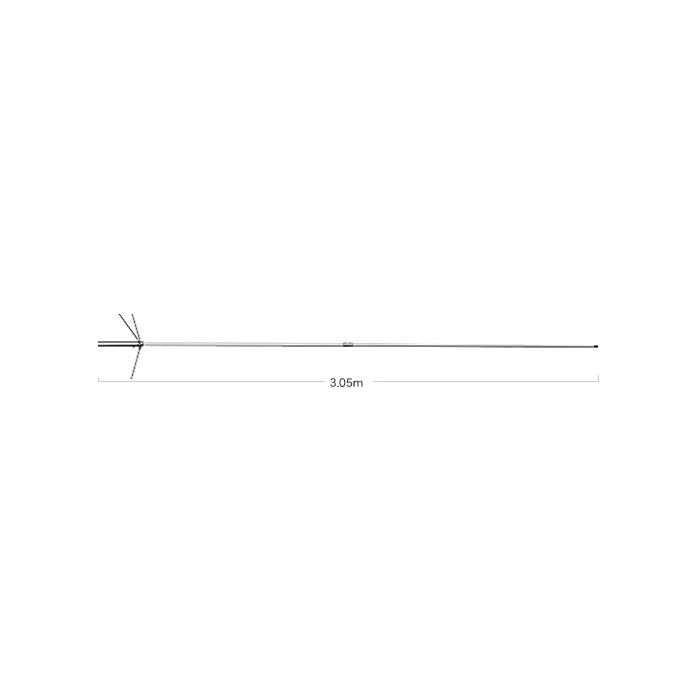

2 Mtr - 70-23 Cm Antenna 6.5-9-10dB L=3,05 Mtr, N connector

Description

X6000: 144-430-1200MHz(2m-70cm-23cm)

  • Length:3.05m
  • Radial length:approx.52cm
  • Weight:1.8kg
  • Gain:6.5dB(144MHz),9.0dB(430MHz),10.0dB(1200MHz)
  • Max.power rating:100W FM(144-430MHz),60W FM(1200MHz),Total 100W
  • FM Impedance:50ohms
  • VSWR:Less than 1.5:1
  • Rated wind velocity:50m-sec.
  • Mast diameter accepted:30mm to 62mm
  • Connector:N-J
  • Type:2x5-8wave C-Load(144MHz),5x5-8wave C-Load(430MHz),6x5-8wave C-Load(1200MHz),FRP outershell
Meer Lezen
Meer informatie
Vrachttype N
Vergunning Nee
Merk Diamond
