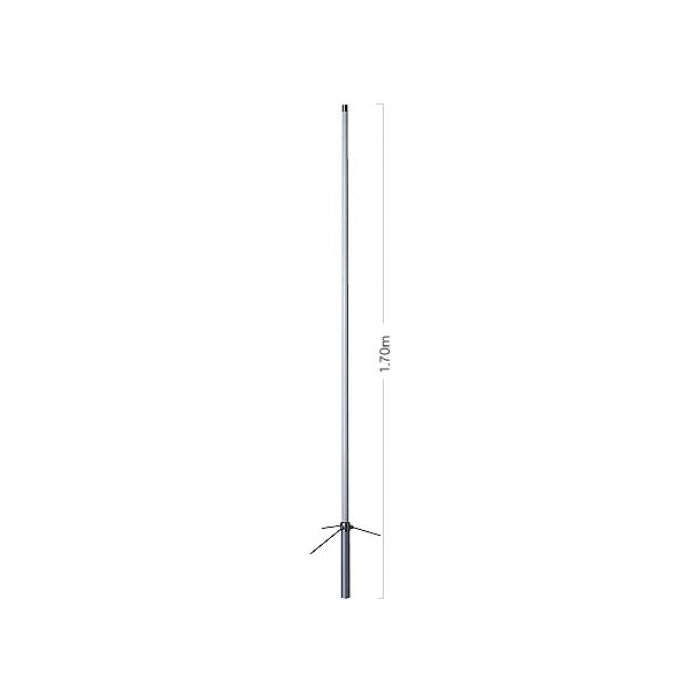

Diamond X-50N Basisantenne

Art.nr. 1636
Op voorraad
Excl. BTW € 89,00 € 73,55
2m-70cm Ant.4.5-7.2dB L=1,7m, N connector

Description

Basis antenne VHF/UHF 2M en 70cm
Length: 1.7 m
Radial Length: approx.19 cm
Weight: 0.9kg
Gain: 4.5 dB (144 - 148MHz)  and 7.2 dB (430 - 440MHz)
Max.power rating: 200 Watt FM (Total)
Impedance: 50 Ohms
VSWR: Less than 1.5:1
Rated wind velocity: 60 m/sec.
Mast diameter accepted: 30 mm to 62 mm
Connector: N-Female (NJ)
Type: 6/8 wave C-Load (144 MHz) ,3 x 5/8 wave C-Load(430MHz), FRP outershell

Basis antenne VHF/UHF 2M en 70cm

Length: 1.7 m

Radial Length: approx.19 cm

Weight: 0.9kg

Gain: 4.5 dB (144 - 148MHz)  and 7.2 dB (430 - 440MHz)

Max.power rating: 200 Watt FM (Total)

Impedance: 50 Ohms

VSWR: Less than 1.5:1

Rated wind velocity: 60 m/sec.

Mast diameter accepted: 30 mm to 62 mm

Connector: N-Female (NJ)

Type: 6/8 wave C-Load (144 MHz) ,3 x 5/8 wave C-Load(430MHz), FRP outershell

Meer Lezen
Meer informatie
Vrachttype N
Vergunning Nee
Merk Diamond
