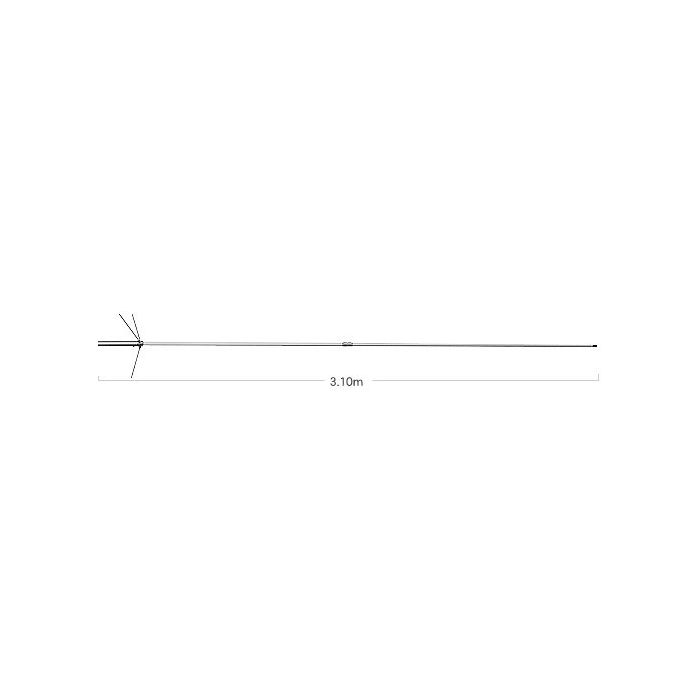

Diamond X-300N Basisantenne

Art.nr. 1631
Op voorraad
Excl. BTW € 124,94 € 103,26
2m-70cm Antenna 6.5-9dB L=3,1 Mtr (KAN NIET WORDEN VERZONDEN, ALLEEN OPGEHAALD)

Description


X300N: 144-430MHz(2m-70cm)

  • Length:3.1m
  • Radial length:approx.52cm
  • Weight:1.5kg
  • Gain:6.5dB(144MHz),9.0dB(430MHz)
  • Max.power rating:200W FM(Total)
  • Impedance:50ohms
  • VSWR:Less than 1.5:1
  • Rated wind velocity:50m-sec.
  • Mast diameter accepted:30mm to 62mm
  • Connector:NJ
  • Type:2x5-8wave C-Load(144MHz),5x5-8wave C-Load(430MHz),FRP outershell
Meer Lezen
Meer informatie
Vrachttype L
Vergunning Nee
Merk Diamond
