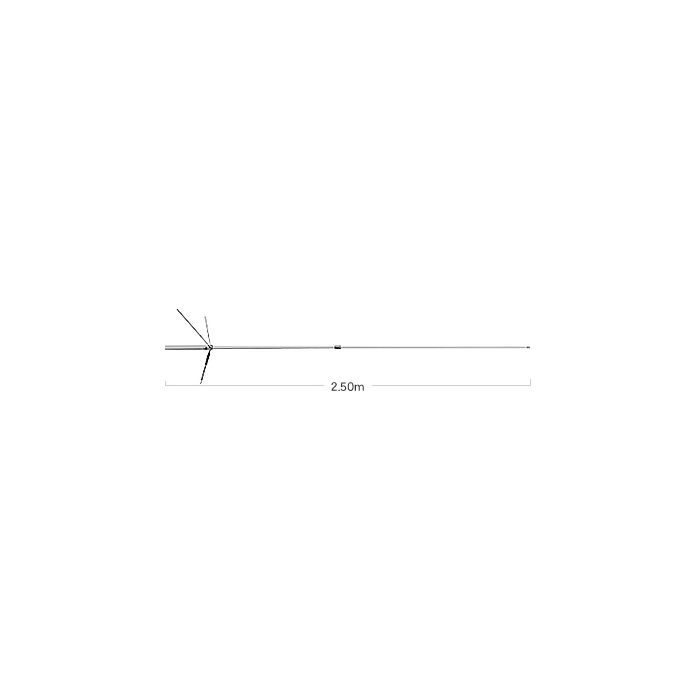

Diamond V-2000 3-Band Base Antenna
Art.nr. 1621
Op voorraad
Excl. BTW
€ 165,00
€ 136,36
50/144/430MHz(6m/2m/70cm) Antenne 2.15-6.2-8.4 dB L=2,5 Mtr Connector: MJ
Description
Length:2.5m / Radial length:approx.92cm(50MHz),52cm / Weight:1.2kg
Gain:2.15dBi(50~52MHz),6.2dB(144MHz),8.4dB(430MHz)
Max.power rating:150W FM(Total) / Impedance:50ohms
VSWR:Less than 1.5:1 / Rated wind velocity:50m/sec.
Mast diameter accepted:30mm to 62mm / Connector:MJ
Type:1/2wave C-Load(50MHz),2x5/8wave C-Load(144MHz),4x5/8wave C-Load(430MHz)
- Length:2.5m
- Radial length:approx.92cm(50MHz),52cm
- Weight:1.2kg
- Gain:2.15dBi(50~52MHz),6.2dB(144MHz),8.4dB(430MHz)
- Max.power rating:150W FM(Total)
- Impedance:50ohms
- VSWR:Less than 1.5:1
- Rated wind velocity:50m/sec.
- Mast diameter accepted:30mm to 62mm
- Connector:MJ (PL)
- Type:1/2wave C-Load(50MHz),2x5/8wave C-Load(144MHz),4x5/8wave C-Load(430MHz)
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Diamond |
