Diamond SE-300 Basisantenne

Art.nr. 1629
Op voorraad
Excl. BTW € 165,00 € 136,36

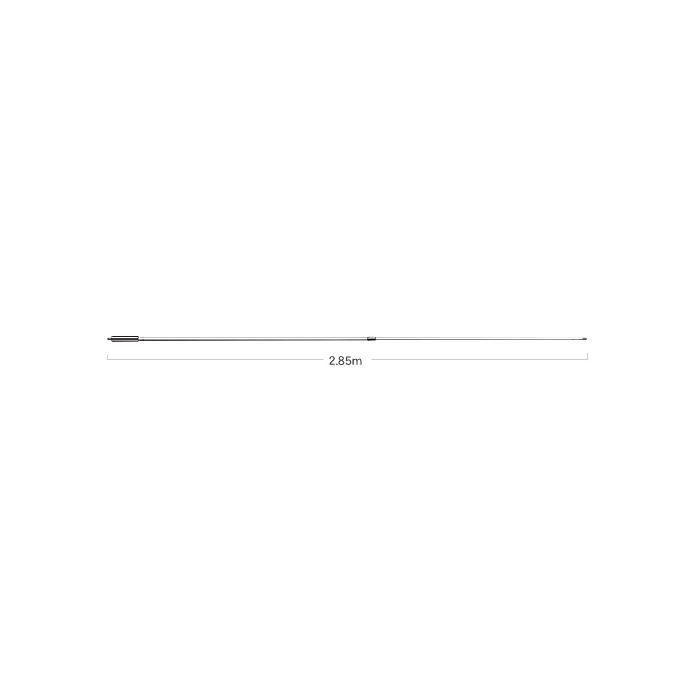

144/430MHz(2m/70cm) base antenna Length:2.85m Connector: MJ (PL Female)

Description


SE300: 144/430MHz(2m/70cm)
Length:2.85m / Weight:1.4kg
Gain:6.5idBi(144MHz),9.0dBi(430MHz) / Max power rating:150W(FM)
Impedance:50ohms / VSWR:Less then 1.5:1 / Rated wind velocity:50m/sec.
Must Diameter accepted:30mm to 62mm / Connector:MJ
Type:2x5/8 wave radialless C-Load(144MHz), 5x5/8 wave radialless C-Load(430MHz),FRP outershell
  • SE300: 144/430MHz(2m/70cm)
  • Length:2.85m
  • Weight:1.4kg
  • Gain:6.5idBi(144MHz),9.0dBi(430MHz)
  • Max power rating:150W(FM)
  • Impedance:50ohms
  • VSWR:Less then 1.5:1
  • Rated wind velocity:50m/sec.
  • Must Diameter accepted:30mm to 62mm
  • Connector:MJ
  • Type:2x5/8 wave radialless C-Load(144MHz), 5x5/8 wave radialless C-Load(430MHz),FRP outershell


Meer Lezen
Meer informatie
Vrachttype N
Vergunning Nee
Merk Diamond
