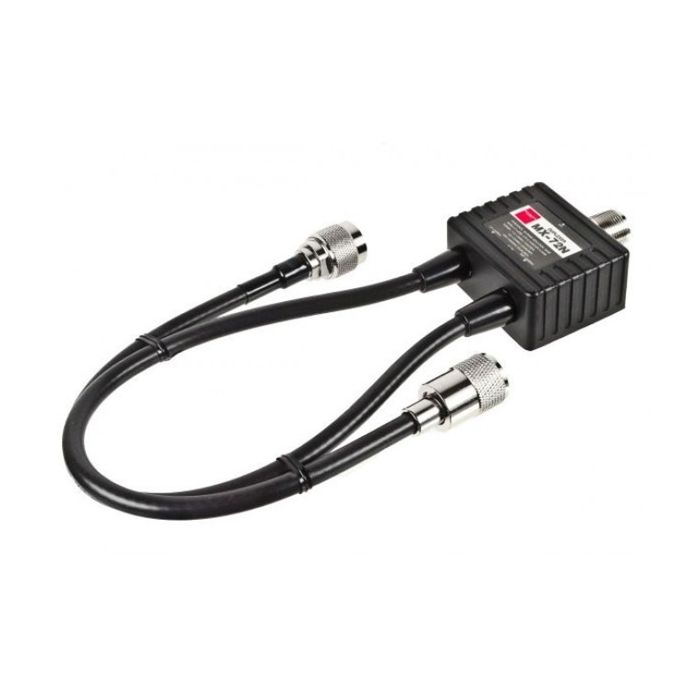

Diamond MX-72N Duplexer
Description
MX72N: HF-144-430MHz
- Dimensions:46Wx25Hx57Dmm
- Weight:220g
- Passband width:LPF-1.6 to 30MHz 49 to 150MHz,HPF-400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only)
- Power rating:1.6 to 30MHz:400W(CW)-1kW(PEP), 49 to 150MHz:150W(CW)-400W(PEP), 400 to 460MHz:100W(CW)-250W(PEP)
- Insertion loss:LPF-Less than 0.15dB,HPF-Less than 0.25dB
- Isolation:LPF:More than 60dB
- Impedance:50ohms - VSWR:Less than 1.2:1
- Connector:(MIX)M-J-(144)M-P-(430)N-P
- Coaxial cable:RG58A-U(35cm)
Vrachttype | N |
---|---|
Vergunning | Nee |
Merk | Diamond |
