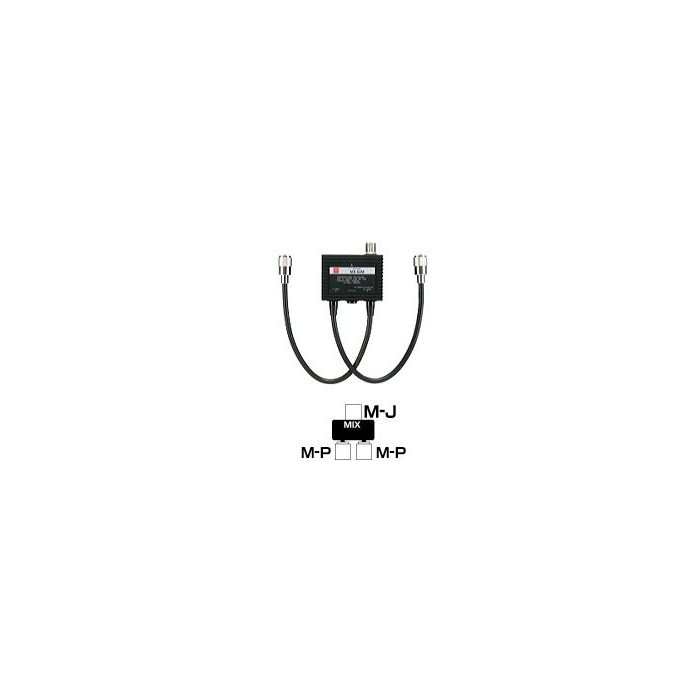

Diamond MX-62M Duplexer
Art.nr. 1557
Op voorraad
Excl. BTW
€ 79,94
€ 66,07
1.6 to 56MHz-76 to 470MHz(76 to 120MHz receiving only)
Description
MX62M: 1.6 to 56MHz-76 to 470MHz(76 to 120MHz receiving only)
Dimensions:86Wx25Hx64Dmm
Weight:360g
Passband width:LPF-1.6 to 56MHz,HPF-76 to 470MHz(76 to 120MHz receiving only)
Power rating:600W(PEP)
Insertion loss:LPF-Less than 0.2dB,140 to 470MHz-Less than 0.3dB
Impedance:50ohms - VSWR:Less than 1.2:1
Connector:(MIX)M-J-(1.6 to 56MHz)M-P-(76 to 470MHz)M-P
Coaxial cable:5D-2V(35cm)
Meer Lezen
| Vrachttype | N |
|---|---|
| Vergunning | Nee |
| Merk | Diamond |
