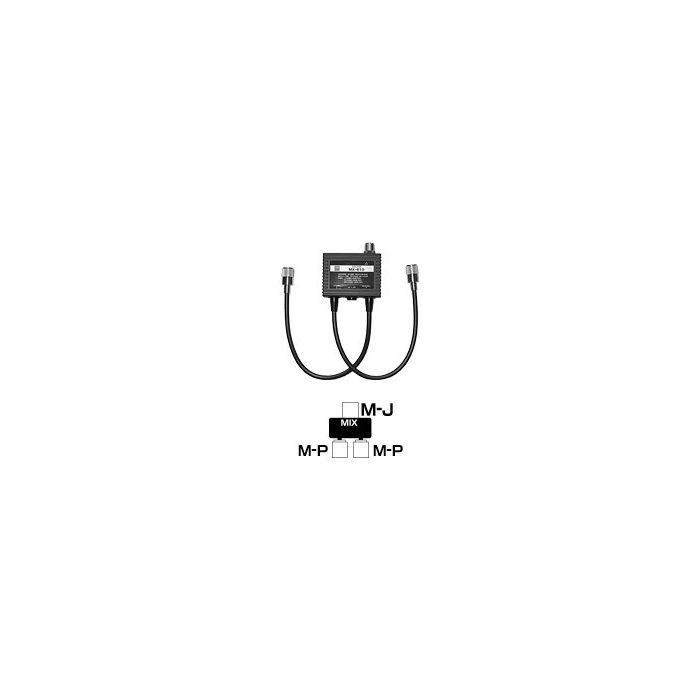

Diamond MX-610 Duplexer

MX610: HF 144-430MHz Dimensions:86Wx25Hx64Dmm Weight:300g Passband width:LPF-1.3 to 30MHz,HPF-49 to 470MHz(76 to 120MHz receiving only) Power rating:1.3 to 30MHz-600W(PEP),49 to 250MHz-600W(PEP),300 to 470MHz-500W(PEP) Isolation loss:LPF-Less than 0.2dB(1.3 to 30MHz),HPF-Less than 0.25dB(49 to 470MHz) Isolation:More than 45dB Impedance:50ohms - VSWR:Less than 1.2:1 Connector:(MIX)M-J-(1.3 to 30MHz)-M-P (49 to 470MHz)M-P Coaxial cable:5D-2VS(35cm)
