Diamond D-130J No Cable Discone Antenne

• Super Discone Antenna D130J: (25 to 1300MHz for receiving) (50-144-430-904-1200MHz for transmitting) Length:1.7m
• Weight:1kg
• Max.diameter:84cm
• Mast diameter accepted:25mm to 50mm
• Max power rating 20W FM(50MHz),200W FM(more than 140MHz)

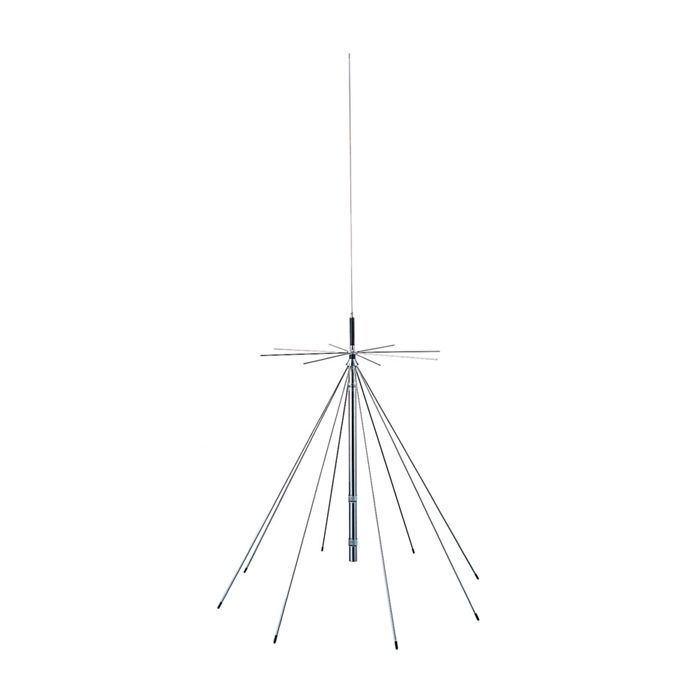

The D130J Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.

Special Features:

• Ultra-wideband design 25 to 1300 MHz receive, 50-1300 MHz transmit (6m tunable for transmit)

• Compact and lightweight design enables antenna to be installed on balcony railing at an apartment or condominium

• Ideal for 2m, 1-1/4m, 70cm, 33cm and 23cm amateur bands

• Excellent "shop" antenna for testing various transmitters on a single coax

• Can be made further compact and lightweight by removing the top loading coil if 25-50 MHz reception is not required

Specifications:

Bands: 25-1300 MHz

Gain dBi: 2 (nominal)

Max Power Rating: 144 MHz up: 200 watts, 6m: 20 watts FM, 50 watts PEP

Height: 5.6'

Weight: 2.2 Lbs.

Connector: UHF

Element Phasing: Wideband Discone

Remarks: Adjustable 50-54 MHz. Also available with Type-N connector.
